Audio Winner DSP680 8 channel smart auto tuning equalizer DSP car processor controlled by app

5 0 Reviews
Price: $ 177
Discount Price: $ 118
  • DSP680

  • AudioWinner

SKU:
Availability:
Quantity:

Cooperation model

We provide OEM service,customizing products according to your specifications and requirements to fit for your local market.providing customers with high-quality customized products and services.


Product purchase instructions

Once the product is sold, it will not be returned. If the product is defective and other maintenance problems,the buyer should
return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be
replaced, the buyer should also pay for the costs of the parts to be replaced. Before returning the items, please confirm the
return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

正面图












接口图3

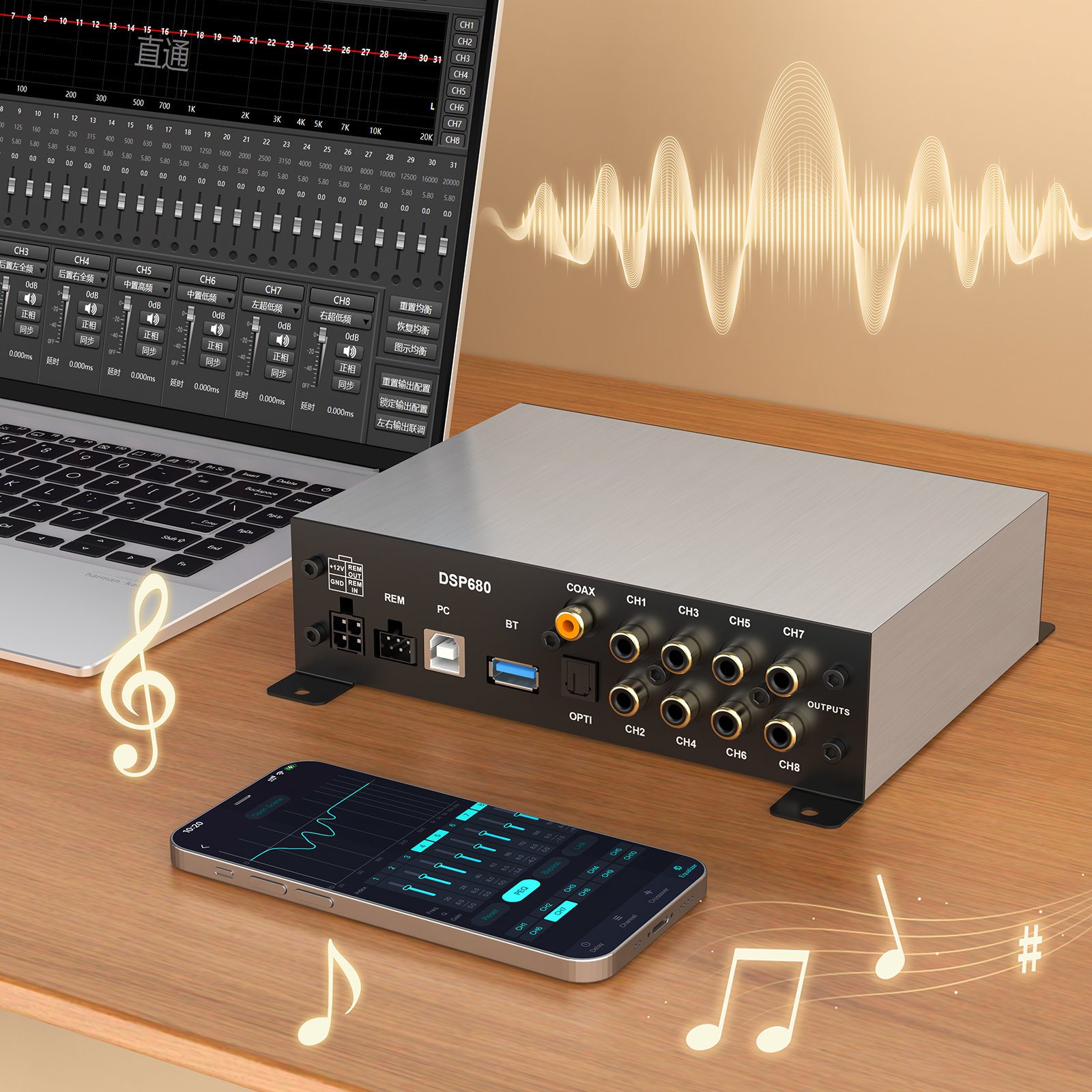

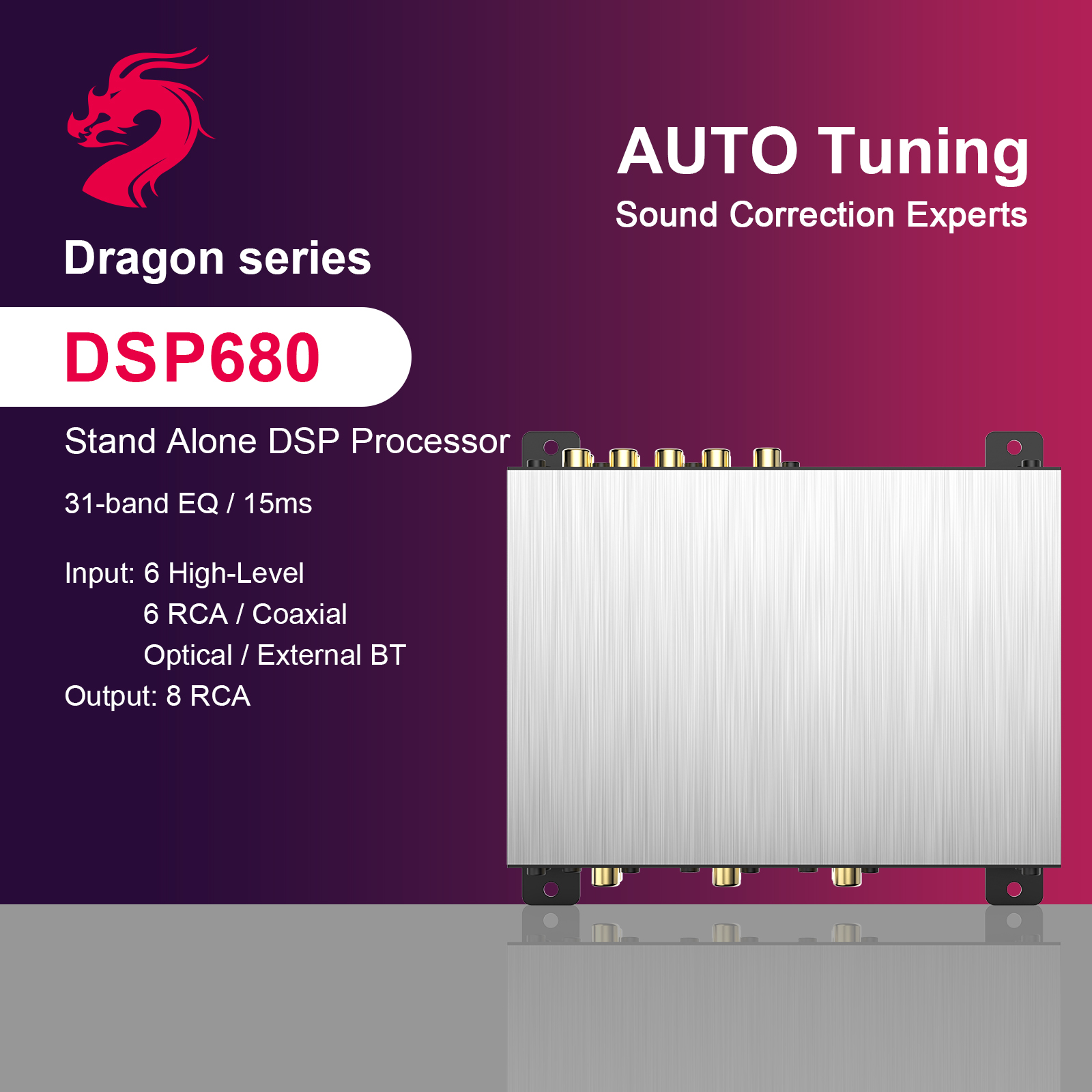

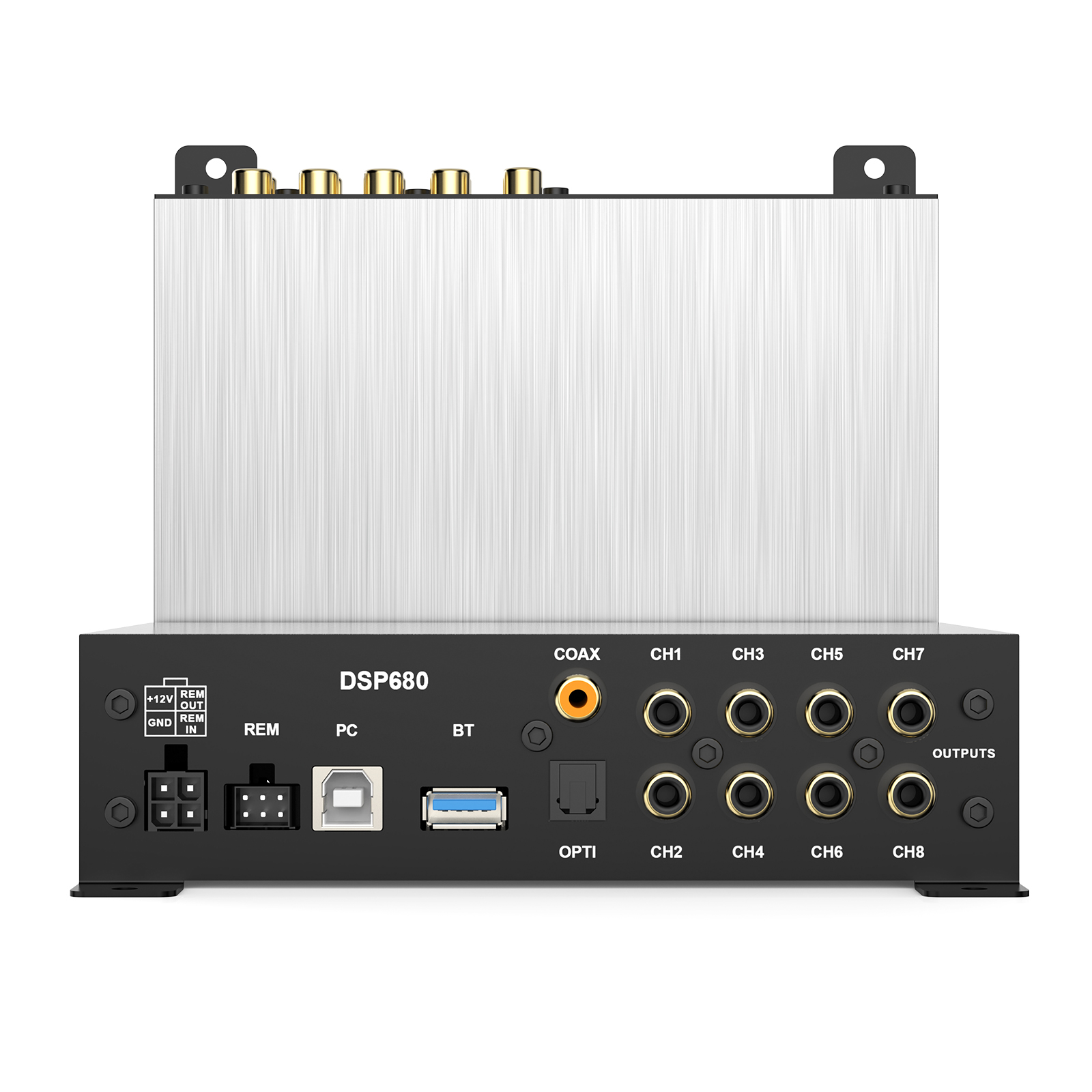

DSP680 8-Channel Processor – The Frequency Surgeon

✅ AI Auto Tuning:

· One-click calibration optimizes soundstage in 15ms!

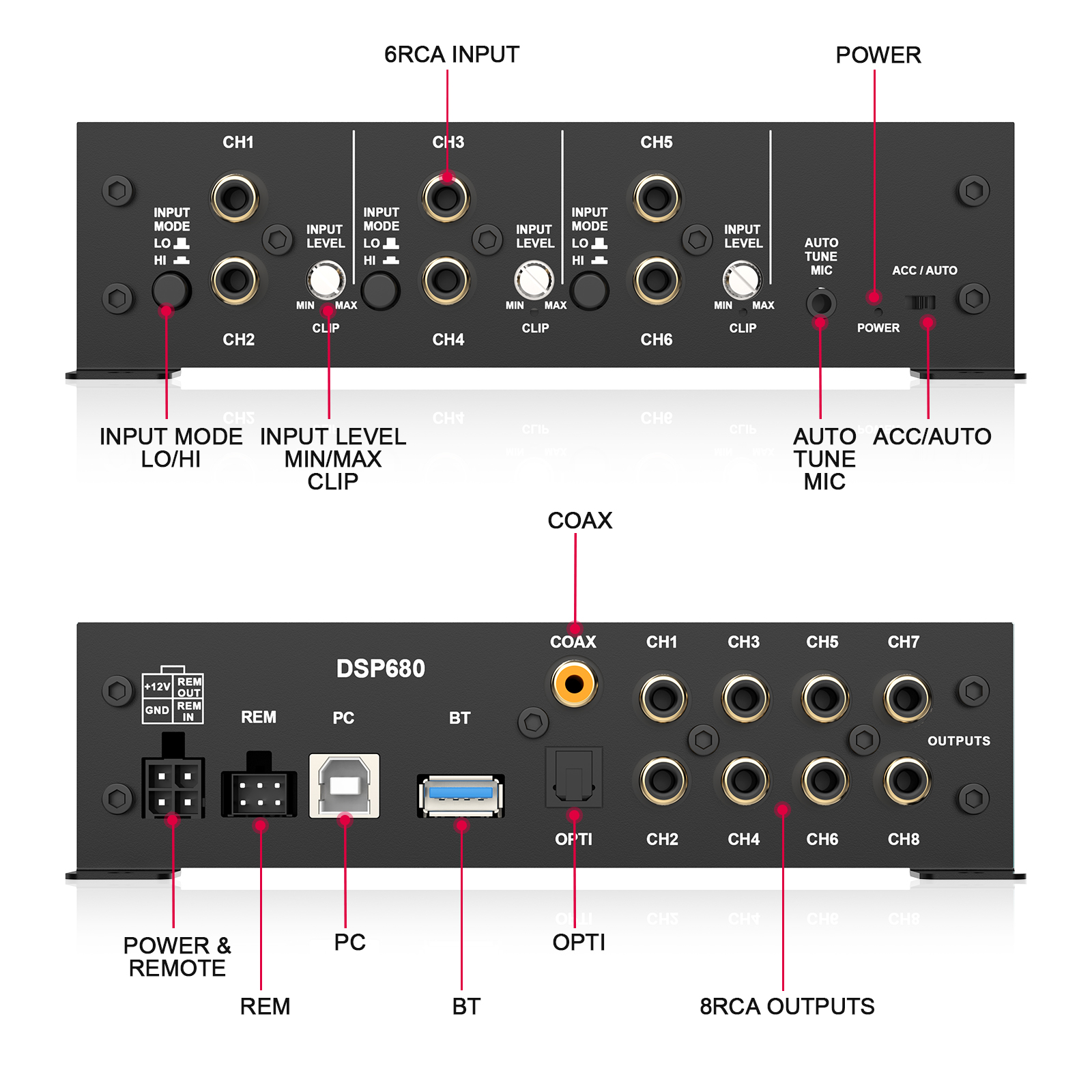

✅ 6 High-Level + Coaxial/Optical/USB I/O:

· 3-17V input for Rolls-Royce/Mercedes MOST systems

· 1-7V RCA output optimized for external amplifiers

✅ Dual-Core 32-bit CIRRUS DSP:

· 24Bit/192KHz processing with 98dB reference-grade SNR

✅ 31-Band EQ & 15ms Alignment:

· 0.5-9 Q value surgical control for millimeter-precise staging

✅ Expandable Bluetooth 5.0/USB:

· Modular Hi-Res audio expansion (modules sold separately)

✅ Greensound Pro App Ecosystem:

· 10 pro presets with cross-platform iOS/Android/PC control

✅ 0.27A Standby & MIL-Grade Design:

· Stable operation in -40℃ environments for overland builds

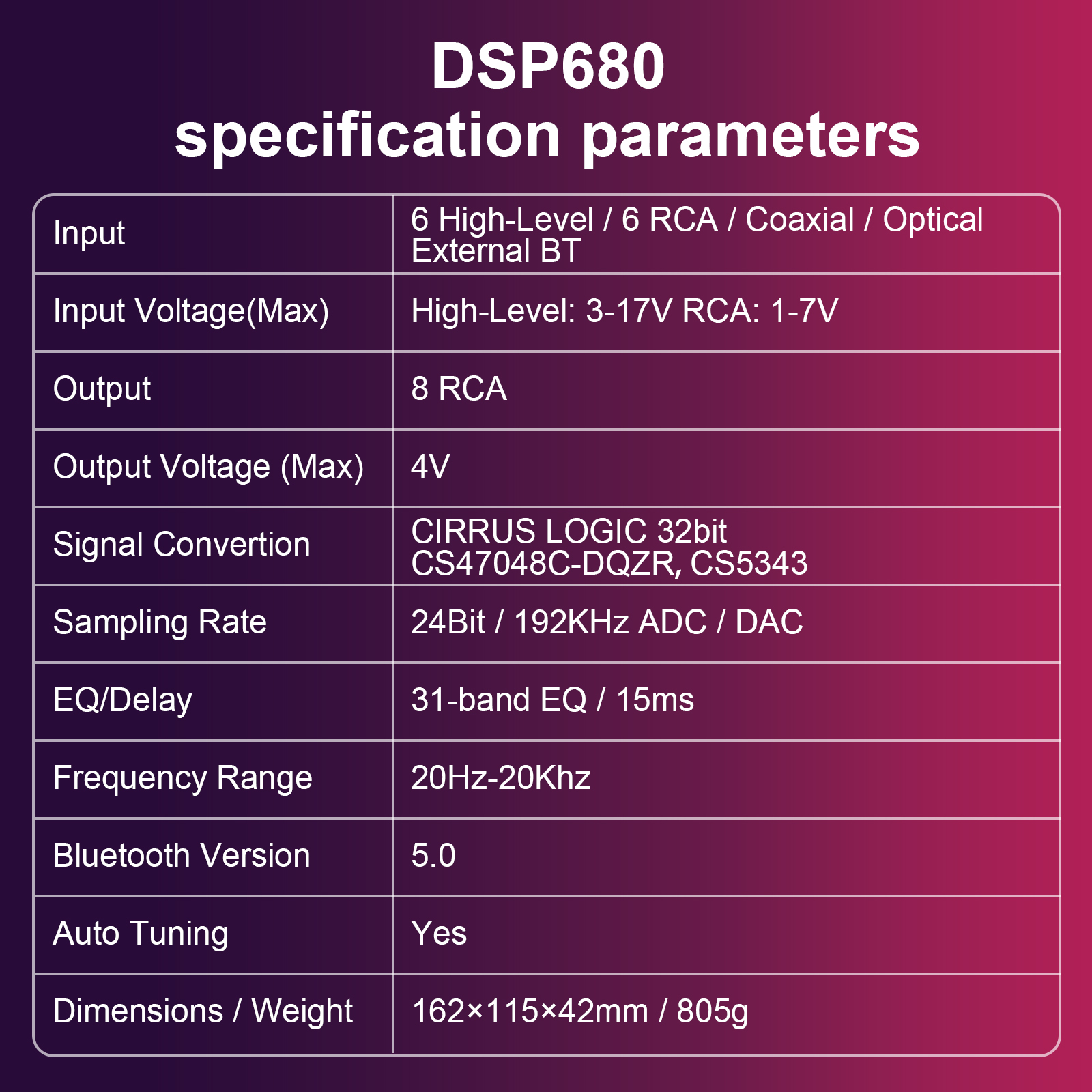

SpecificationDSP680
Input6   High Level/6 RCA/Coaxial/Optical/USB Audio(External)/BT(External)
Input Voltage(Max)High   Level  3-17V,RCA 1-7V
Output8   RCA
Output Voltage (Max)4V
Output GainNA
Optical InYES
Coaxial InYES
Amplfiier typeNA
Power OutputNA
(AD & DA) Signal ConvertionCIRRUS   LOGIC 32bit CS47048C-DQZR,CS5343
Sampling Rate24Bit/192KHz   ADC/DAC
EQ/Delay31Band/15ms
Frequency Range20-20K
Q Value(Slope)0.5-9
EQ Gain-18dB-12dB
FilteringButter   , Bessel, Link
Filtering Crossover point20-20k
Filter slope6dB/oct   -48dB/Oct
Phase0-180
Time Alignment (delay)15ms
Preset10
Frequency Respone20-20k
Signal to Noise - RCA98dB
Signal to Noise - Power AmpNA
Input Resistance20kΩ
Low level output Resistance680Ω
Static Current0.27A
Operating Voltage9-16V
Working Current Range0.3-1A
Temperature resistanceNA
Bluetoothnot   build in
Bluetooth Version5.0
USB Audio Built inNA
USB DISKNA
RemoteLED/圆屏线控
PC Connectionyes
PC Softwareyes
Android Appyes
IOS appYES
Auto TuningYES
REM Input3.5V
REM Output0.1A
Over heat protectionNA
Over Load ProtectionNA
Working IndicatorsYES
