T810.8L
AUDIOWINNER
| Color: | |
|---|---|
| Size: | |
| SKU: | |
| Availability: | |
| Quantity: | |

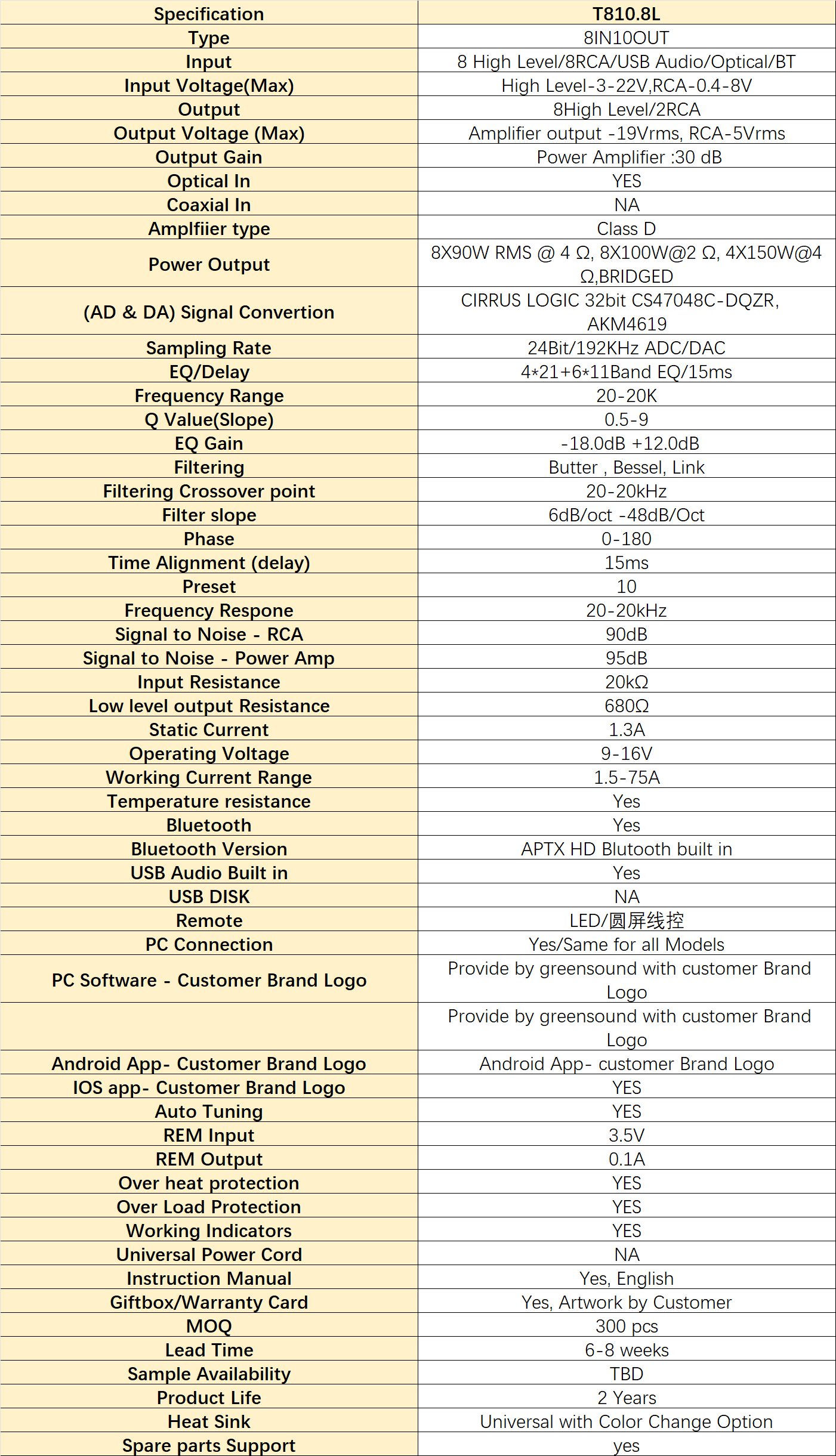

| Specification | T810.8L |

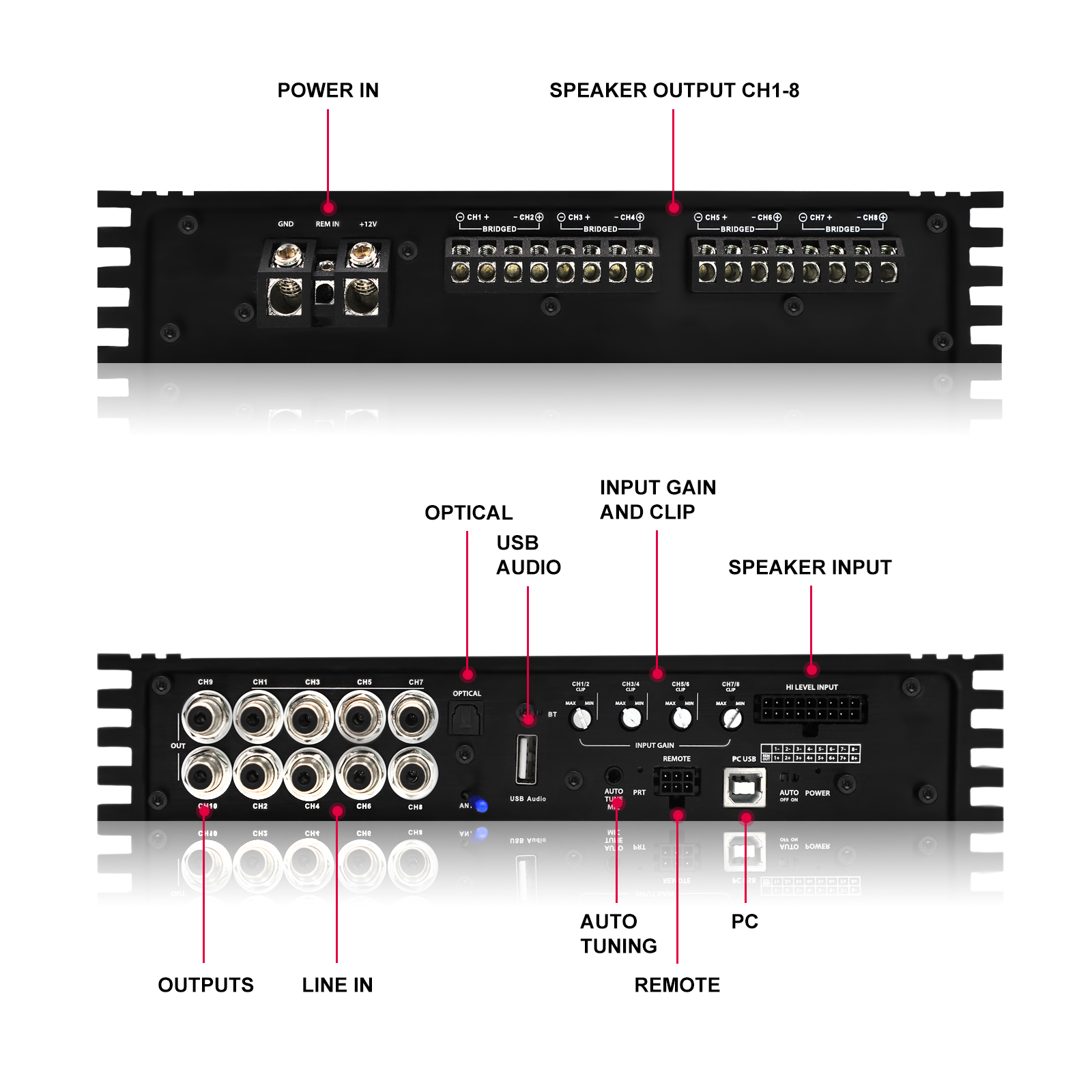

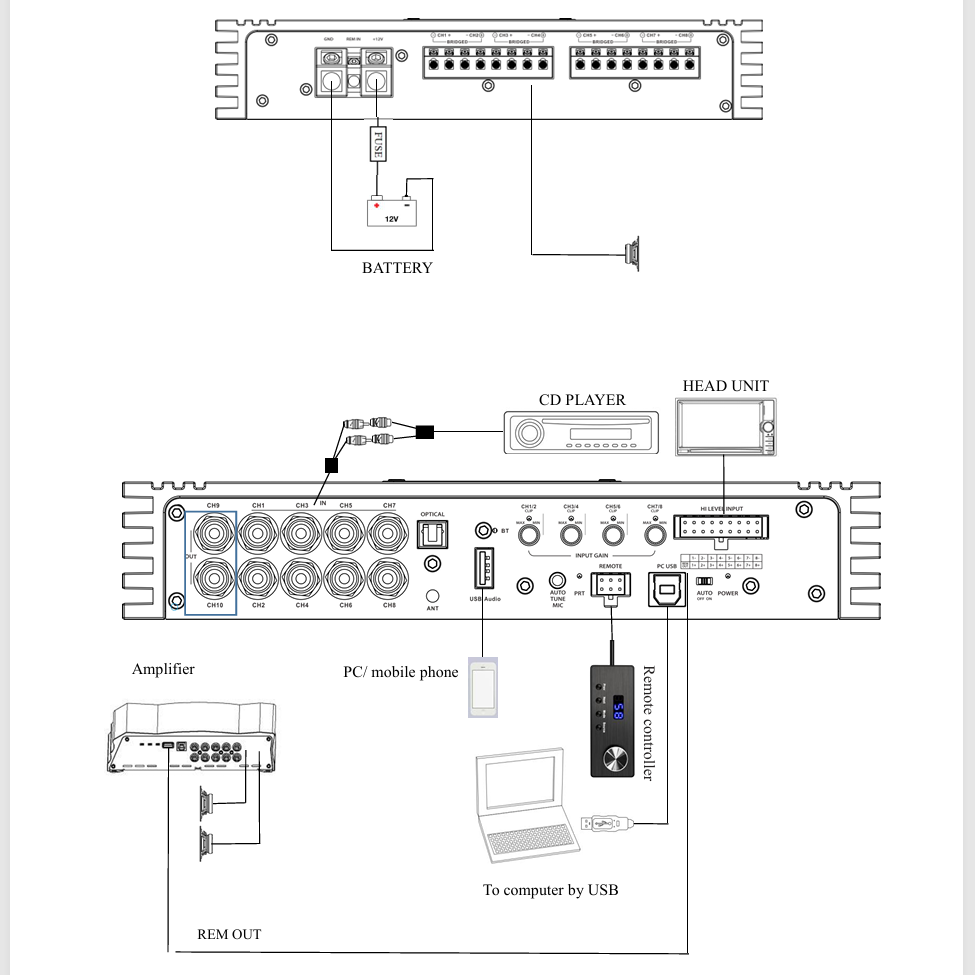

| Input | 8 High Level/8RCA/USB Audio/Optical/BT |
| Input Voltage(Max) | High Level-3-22V,RCA-0.4-8V |
| Output | 8High Level/2RCA |
| Output Voltage (Max) | Amplifier output -19Vrms, RCA-5Vrms |
| Output Gain | Power Amplifier :30 dB |
| Optical In | YES |
| Coaxial In | NA |
| Amplfiier type | Class D |
| Power Output | 8X90W RMS @ 4 Ω, 8X100W@2 Ω, 4X150W@4 Ω,BRIDGED |

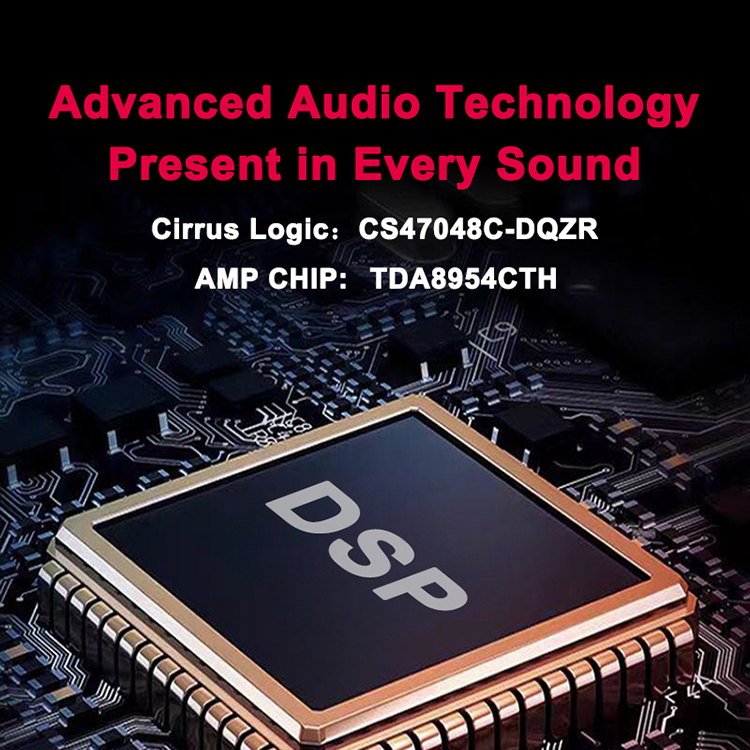

| (AD & DA) Signal Convertion | CIRRUS LOGIC 32bit CS47048C-DQZR， AKM4619 |
| Sampling Rate | 24Bit/192KHz ADC/DAC |
| EQ/Delay | 4*21+6*11Band EQ/15ms |
| Frequency Range | 20-20K |
| Q Value(Slope) | 0.5-9 |
| EQ Gain | -18.0dB +12.0dB |
| Filtering | Butter , Bessel, Link |
| Filtering Crossover point | 20-20kHz |
| Filter slope | 6dB/oct -48dB/Oct |
| Phase | 0-180 |
| Time Alignment (delay) | 15ms |
| Preset | 10 |
| Frequency Respone | 20-20kHz |
| Signal to Noise - RCA | 90dB |
| Signal to Noise - Power Amp | 95dB |
| Input Resistance | 20kΩ |
| Low level output Resistance | 680Ω |
| Static Current | 1.3A |
| Operating Voltage | 9-16V |
| Working Current Range | 1.5-75A |
| Temperature resistance | Yes |
| Bluetooth | Yes |
| Bluetooth Version | APTX HD Blutooth built in |
| USB Audio Built in | Yes |
| USB DISK | NA |
| Remote | LED/圆屏线控 |
| PC Connection | yes |
| PC Software | yes |
| Android App | yes |
| IOS app | YES |

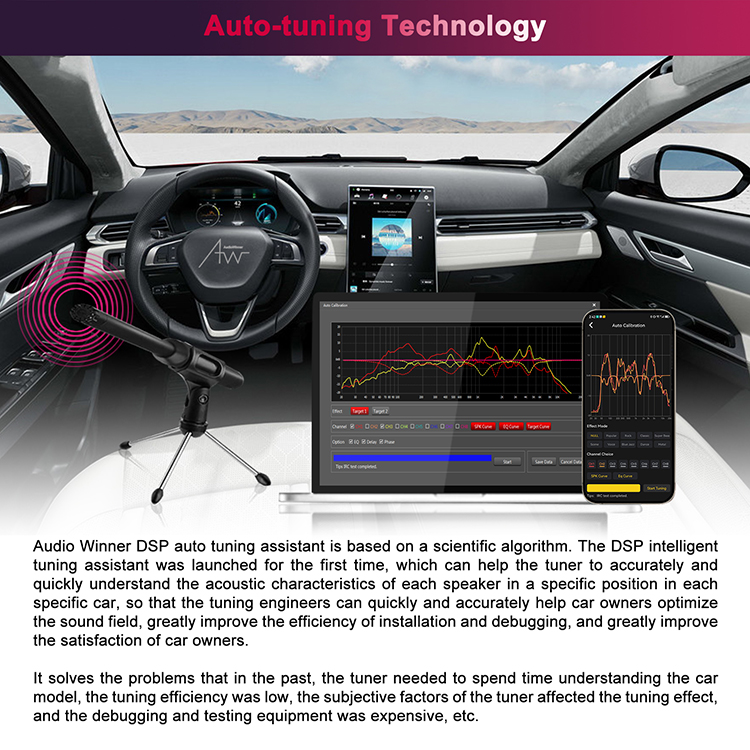

| Auto Tuning | YES |
| REM Input | 3.5V |
| REM Output | 0.1A |
| Over heat protection | YES |
| Over Load Protection | YES |
| Working Indicators | YES |
| Specification | T810.8L |
| Input | 8 High Level/8RCA/USB Audio/Optical/BT |
| Input Voltage(Max) | High Level-3-22V,RCA-0.4-8V |
| Output | 8High Level/2RCA |
| Output Voltage (Max) | Amplifier output -19Vrms, RCA-5Vrms |
| Output Gain | Power Amplifier :30 dB |
| Optical In | YES |
| Coaxial In | NA |
| Amplfiier type | Class D |
| Power Output | 8X90W RMS @ 4 Ω, 8X100W@2 Ω, 4X150W@4 Ω,BRIDGED |
| (AD & DA) Signal Convertion | CIRRUS LOGIC 32bit CS47048C-DQZR， AKM4619 |
| Sampling Rate | 24Bit/192KHz ADC/DAC |
| EQ/Delay | 4*21+6*11Band EQ/15ms |
| Frequency Range | 20-20K |
| Q Value(Slope) | 0.5-9 |
| EQ Gain | -18.0dB +12.0dB |
| Filtering | Butter , Bessel, Link |
| Filtering Crossover point | 20-20kHz |
| Filter slope | 6dB/oct -48dB/Oct |
| Phase | 0-180 |
| Time Alignment (delay) | 15ms |
| Preset | 10 |
| Frequency Respone | 20-20kHz |
| Signal to Noise - RCA | 90dB |
| Signal to Noise - Power Amp | 95dB |
| Input Resistance | 20kΩ |
| Low level output Resistance | 680Ω |
| Static Current | 1.3A |
| Operating Voltage | 9-16V |
| Working Current Range | 1.5-75A |
| Temperature resistance | Yes |
| Bluetooth | Yes |
| Bluetooth Version | APTX HD Blutooth built in |
| USB Audio Built in | Yes |
| USB DISK | NA |
| Remote | LED/圆屏线控 |
| PC Connection | yes |
| PC Software | yes |
| Android App | yes |
| IOS app | YES |
| Auto Tuning | YES |
| REM Input | 3.5V |
| REM Output | 0.1A |
| Over heat protection | YES |
| Over Load Protection | YES |
| Working Indicators | YES |

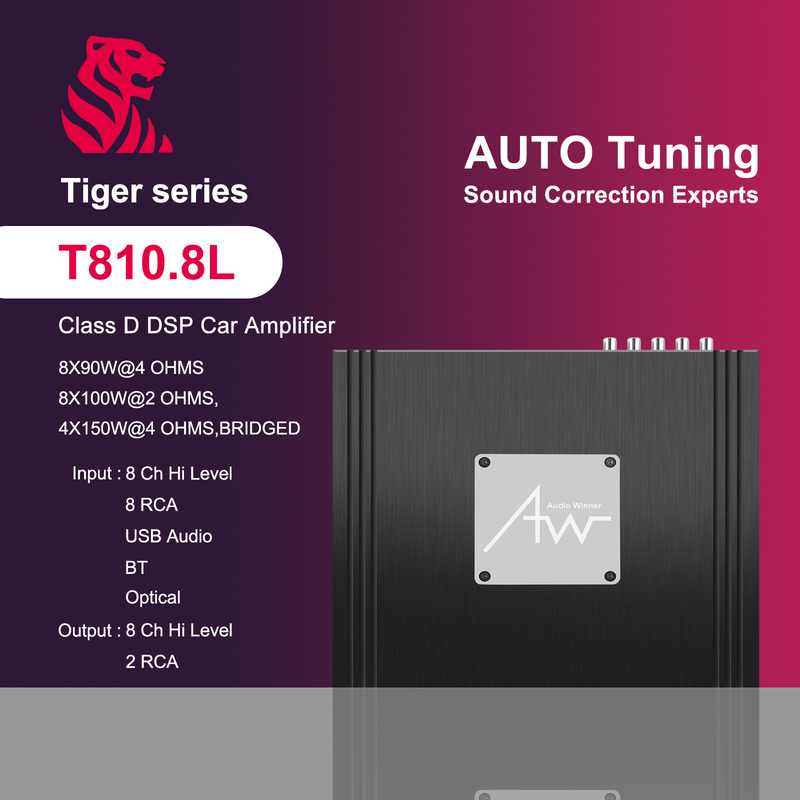

T810.8L 8-Channel DSP Amplifier – The Bass Terminator
✅ 8 High-Level + 8 RCA Inputs：Master complex active OEM systems (3-22V input range).
✅ CLASS D Dual Power Modes：
· 90W×8@4Ω / 100W×8@2Ω (Standard)
· Bridged 150W×4@4Ω：Dual subwoofer annihilation mode!
✅ Dual-Core 32-bit DSP (CIRRUS+AKM)：24Bit/192KHz studio-grade processing with 95dB SNR.
✅ 126-Band EQ & AI Auto-Tuning：4×21 treble + 6×11 bass zones for SPL competition profiles.
✅ APTX HD & USB Audio Direct：Lossless 24-bit streaming via Bluetooth/USB/PC.
✅ Military-Grade 75A Current：Built for -40℃~80℃ extreme environments (MIL-STD-810G).

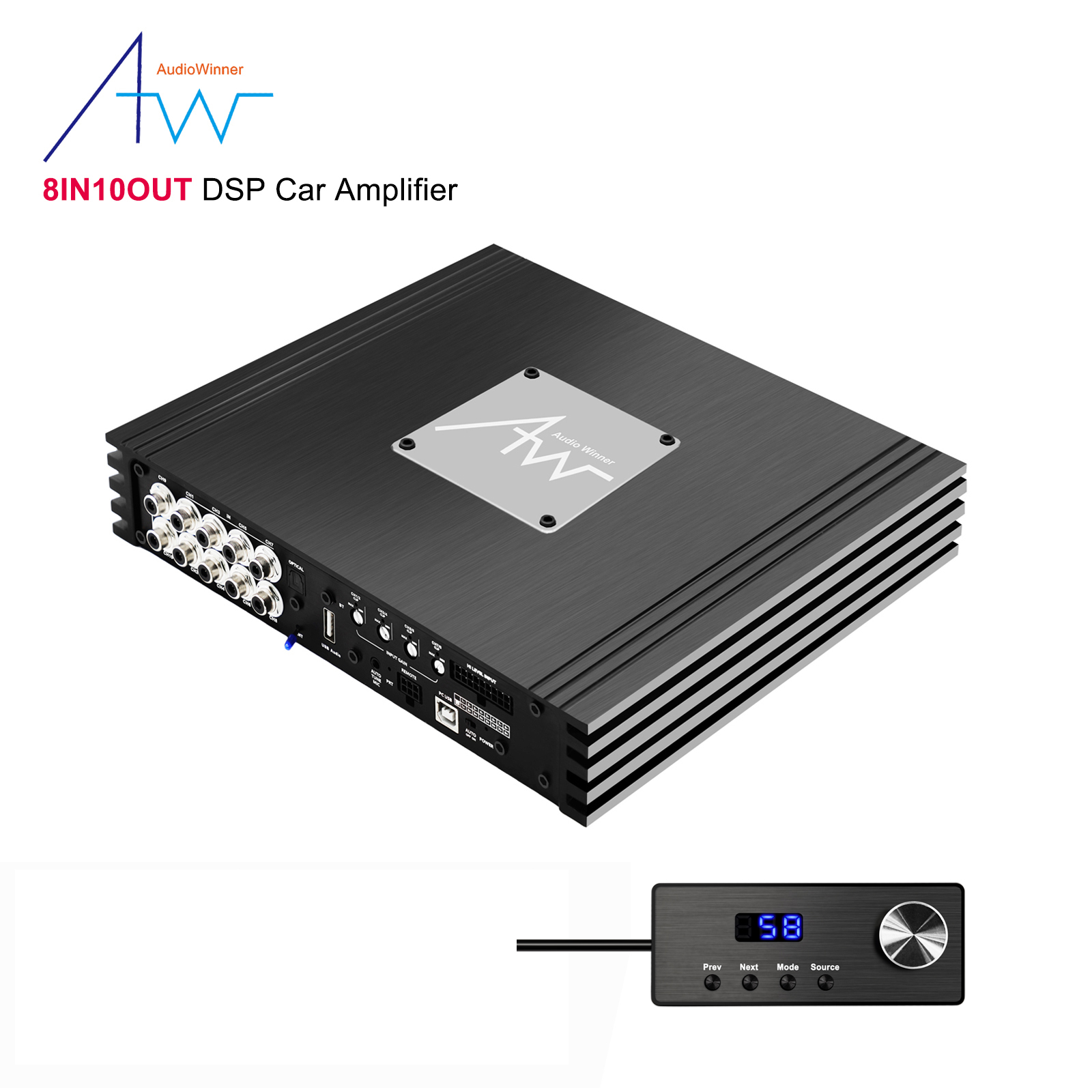

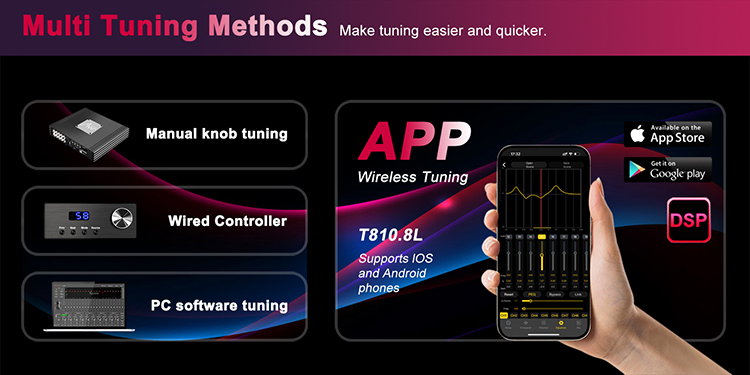

✅ LED Command Center & 10 Presets：Cross-platform control (iOS/Android/PC) in real-time.
Engineered For：Dolby Atmos car theaters, SPL world records, armored vehicle audio systems.
T810.8L 8-Channel DSP Amplifier – The Bass Terminator
✅ 8 High-Level + 8 RCA Inputs：Master complex active OEM systems (3-22V input range).
✅ CLASS D Dual Power Modes：
· 90W×8@4Ω / 100W×8@2Ω (Standard)
· Bridged 150W×4@4Ω：Dual subwoofer annihilation mode!
✅ Dual-Core 32-bit DSP (CIRRUS+AKM)：24Bit/192KHz studio-grade processing with 95dB SNR.
✅ 126-Band EQ & AI Auto-Tuning：4×21 treble + 6×11 bass zones for SPL competition profiles.
✅ APTX HD & USB Audio Direct：Lossless 24-bit streaming via Bluetooth/USB/PC.
✅ Military-Grade 75A Current：Built for -40℃~80℃ extreme environments (MIL-STD-810G).
✅ LED Command Center & 10 Presets：Cross-platform control (iOS/Android/PC) in real-time.
Engineered For：Dolby Atmos car theaters, SPL world records, armored vehicle audio systems.
