How to Tune DSP Processor for Car Audio: Beginner’s Guide

DSP tuning is one of the best ways to improve car audio sound quality.

Modern DSP processors allow users to adjust crossover settings, EQ, time alignment, and channel routing for a more accurate listening experience.

Compared with traditional amplifiers, DSP systems provide cleaner vocals, stronger bass, and better stereo imaging.

This beginner guide explains how to tune a car audio DSP processor step by step using both PC software and APP control.

What Is a DSP Processor for Car Audio?

A DSP processor digitally controls audio signals inside a car audio system.

It can improve:

- Sound staging

- Vocal clarity

- Bass response

- Frequency balance

- Speaker protection

Modern DSP processors also support Bluetooth APP tuning and PC software adjustment for easier operation.

Understanding DSP Tuning Basics

Before tuning a DSP processor, users should understand the four main tuning sections:

- Channel Assignment

- Crossover Settings

- Equalizer (EQ)

- Time Alignment

These functions work together to create balanced sound inside the vehicle.

Step 1: Configure Input Source

Most DSP processors support multiple audio sources, including:

- Bluetooth

- Optical

- AUX

- High Level Input

- USB Audio

Bluetooth APP control is one of the easiest tuning methods for beginners.

DSP46U+ supports wireless APP tuning and PC software adjustment for Android, iOS, and Windows systems.

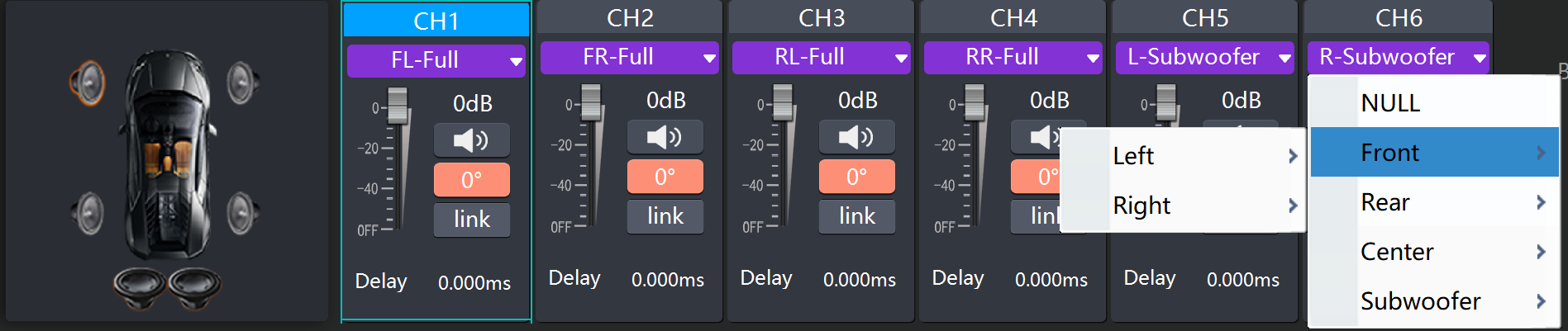

Step 2: Configure Channel Outputs

Correct channel routing is essential for proper DSP tuning.

Typical setup:

| Channel | Speaker |

|---|---|

| CH1 | Front Left |

| CH2 | Front Right |

| CH3 | Rear Left |

| CH4 | Rear Right |

| CH5 | Left Subwoofer |

| CH6 | Right Subwoofer |

Incorrect channel assignment may cause poor sound imaging and weak stereo performance.

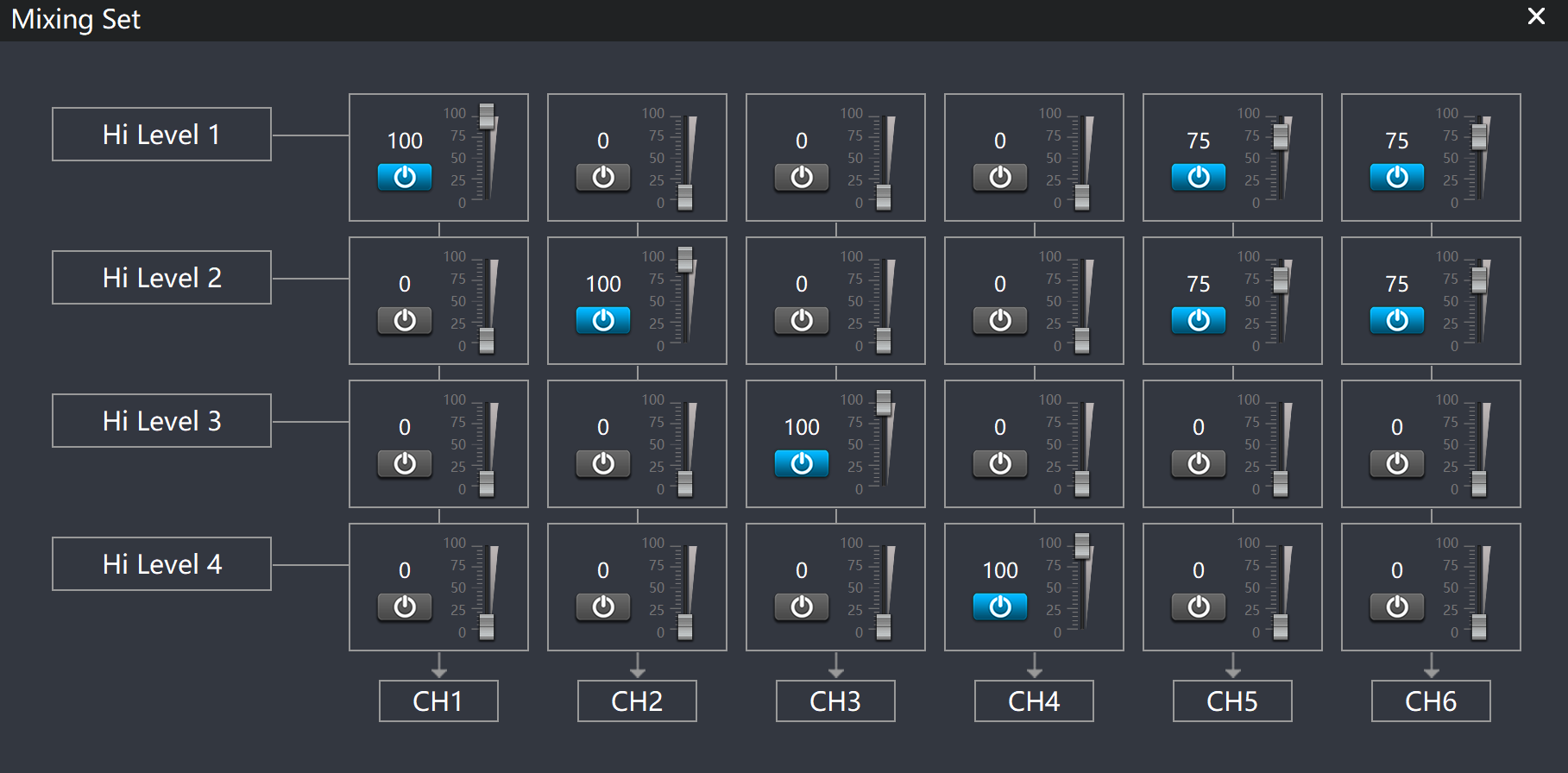

DSP Mixing Matrix Function

Modern DSP processors use a signal mixing matrix to route audio signals between inputs and outputs.

A DSP mixing matrix allows flexible audio routing for:

- Front and rear speakers

- Subwoofer integration

- OEM factory audio systems

- Multi-channel active systems

Advanced DSP processors support adjustable input gain and independent signal routing for more accurate tuning.

DSP46U+ supports flexible mixing matrix adjustment through professional PC software.

Step 3: Adjust Crossover Settings

Crossover settings determine which frequencies are sent to different speakers.

Recommended beginner crossover settings:

| Speaker | HPF | LPF |

|---|---|---|

| Front Speakers | 80Hz | OFF |

| Rear Speakers | 80Hz | OFF |

| Subwoofer | 30Hz | 150Hz |

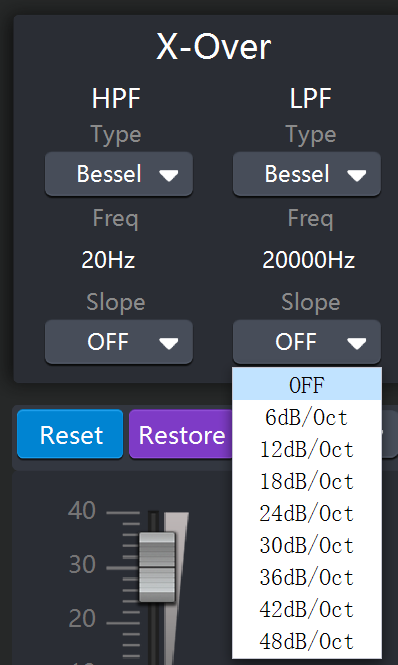

Understanding Crossover Slope

Crossover slope controls how quickly frequencies are reduced beyond the crossover point.

Common DSP slope settings include:

| Slope | Sound Character |

|---|---|

| 6dB | Smooth transition |

| 12dB | Balanced sound |

| 18dB | Better speaker protection |

| 24dB | Cleaner frequency separation |

Recommended beginner settings:

- Front speakers: 12dB or 18dB

- Subwoofer: 18dB or 24dB

Butterworth and Bessel crossover filters are commonly used for smooth sound transition.

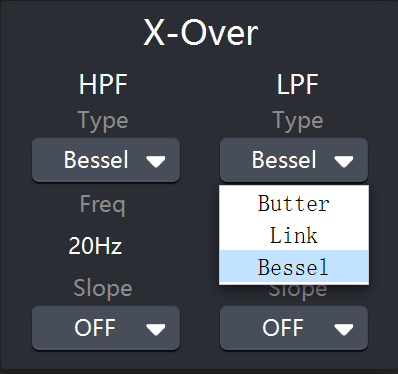

Butterworth vs Bessel Filters

Most DSP processors provide different crossover filter types.

Butterworth filters offer cleaner frequency separation and stronger bass control.

Bessel filters provide smoother sound transition and better vocal performance.

Butterworth filters are commonly recommended for beginner DSP tuning.

Step 4: Tune EQ Settings

EQ tuning helps improve frequency balance and vocal clarity.

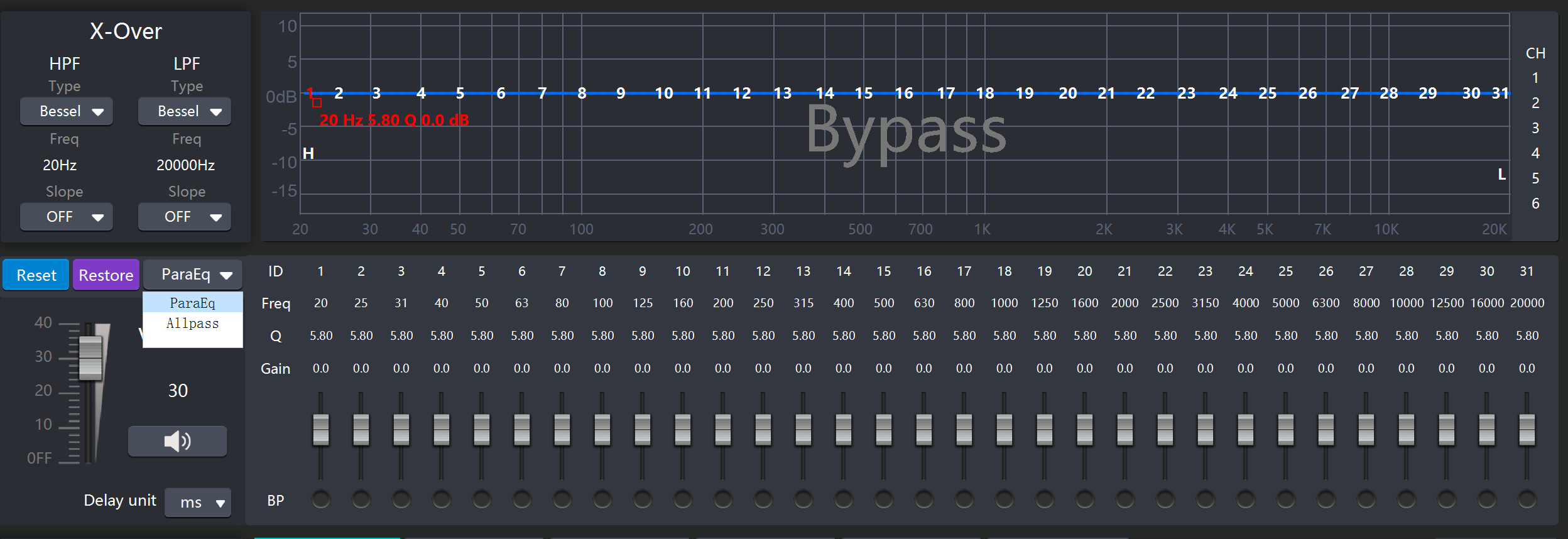

A 31-band EQ DSP processor allows more accurate tuning for different vehicles and speaker systems.

Basic EQ tuning tips:

- Avoid excessive bass boost

- Reduce harsh mid frequencies

- Improve vocal clarity carefully

- Tune gradually while listening

Flat EQ settings are recommended before advanced tuning.

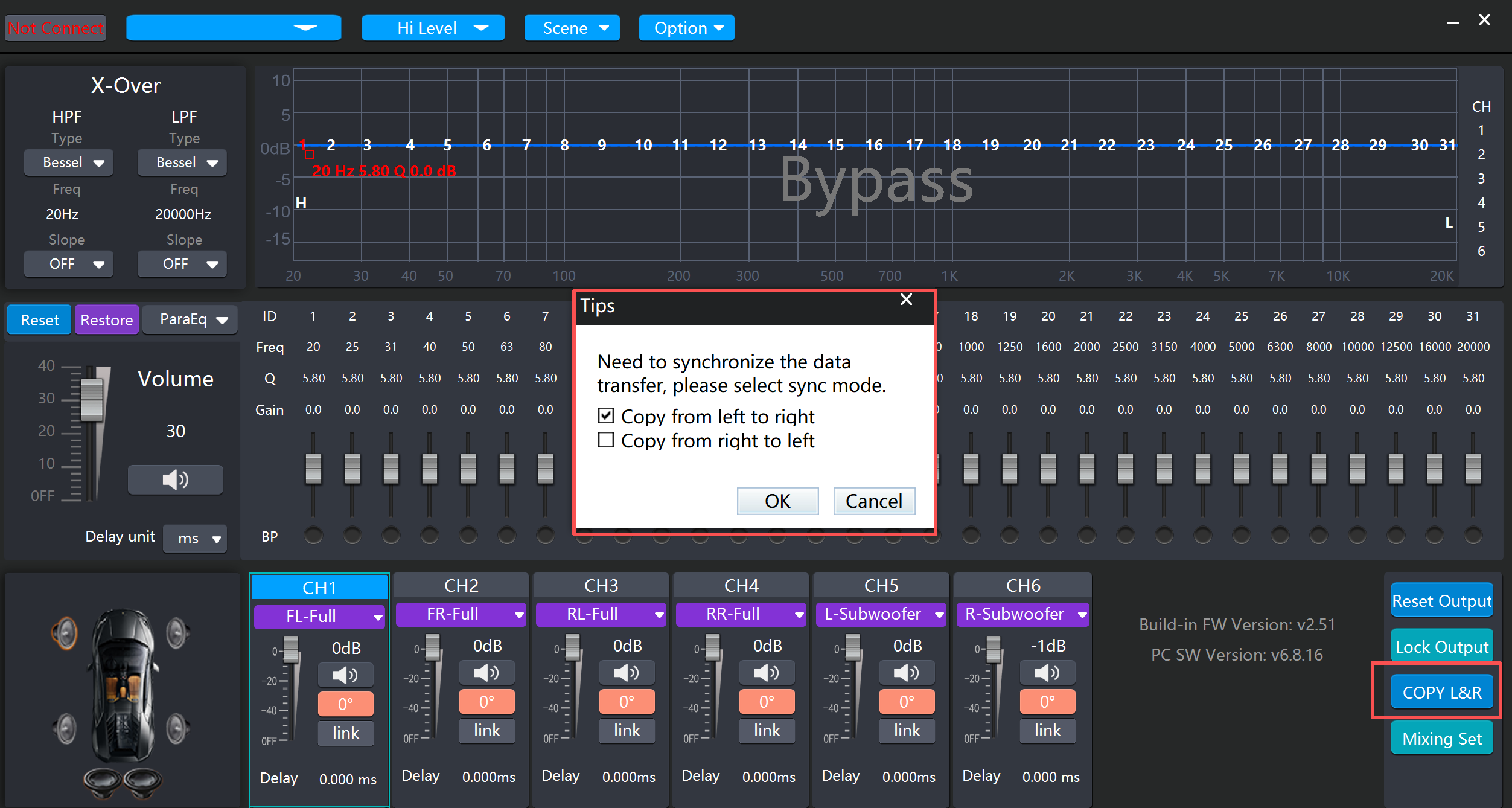

Left and Right Channel Link Adjustment

Many DSP processors support Left/Right channel synchronization.

The Link function allows users to synchronize:

- EQ adjustment

- Gain settings

- Crossover settings

- Phase control

This helps beginners tune stereo systems faster while maintaining balanced sound performance.

Professional DSP software often includes one-click L/R synchronization for easier tuning.

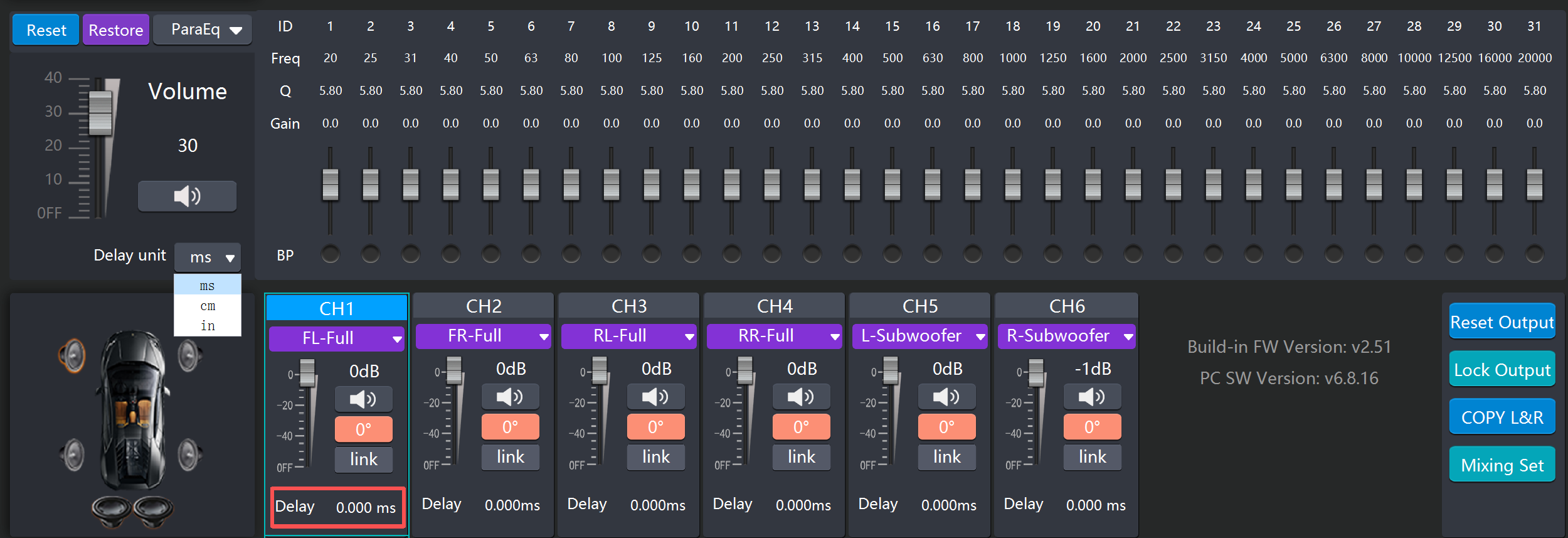

Step 5: Adjust Time Alignment

Time alignment ensures sound from all speakers reaches the listener simultaneously.

Without delay adjustment, nearby speakers may dominate the sound stage.

DSP processors with visual delay interfaces make tuning easier and more accurate for beginners.

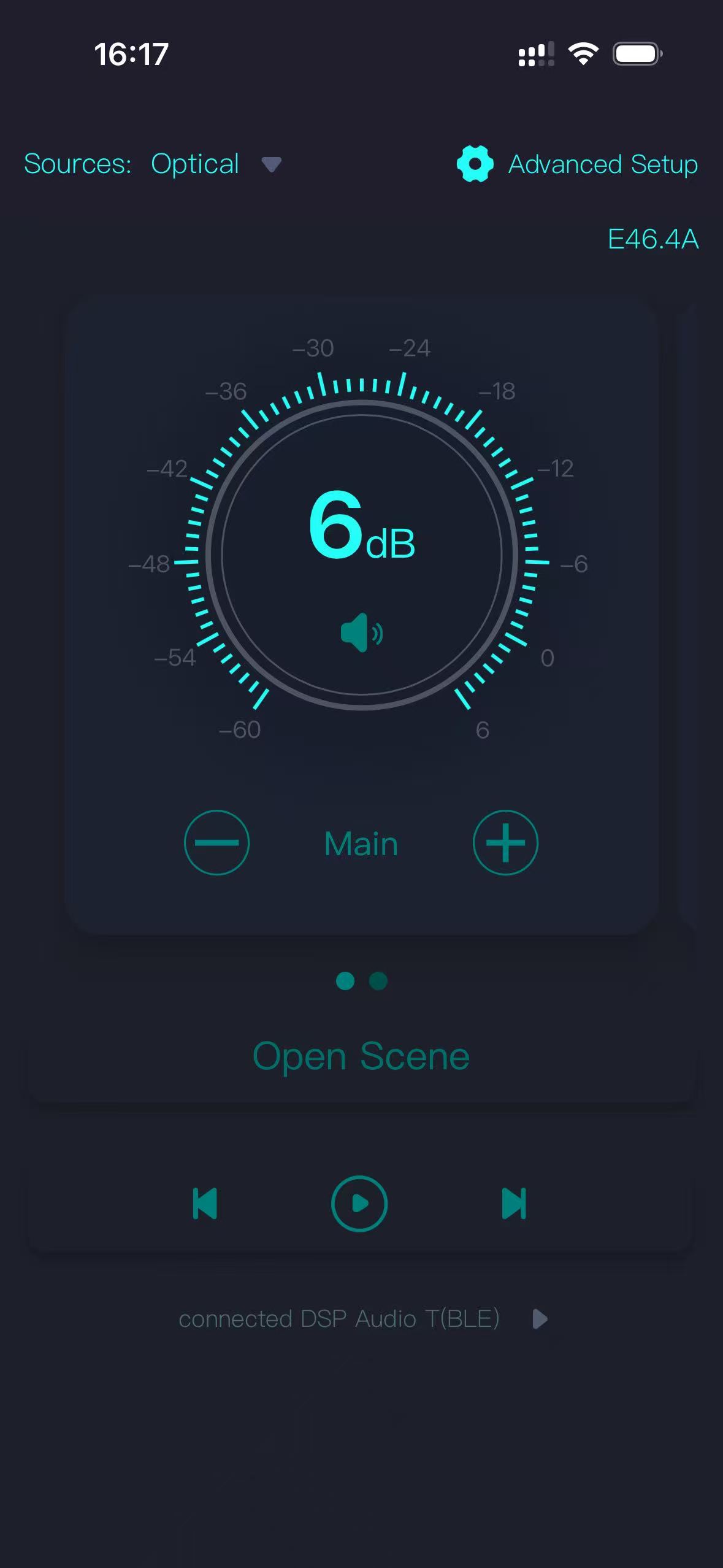

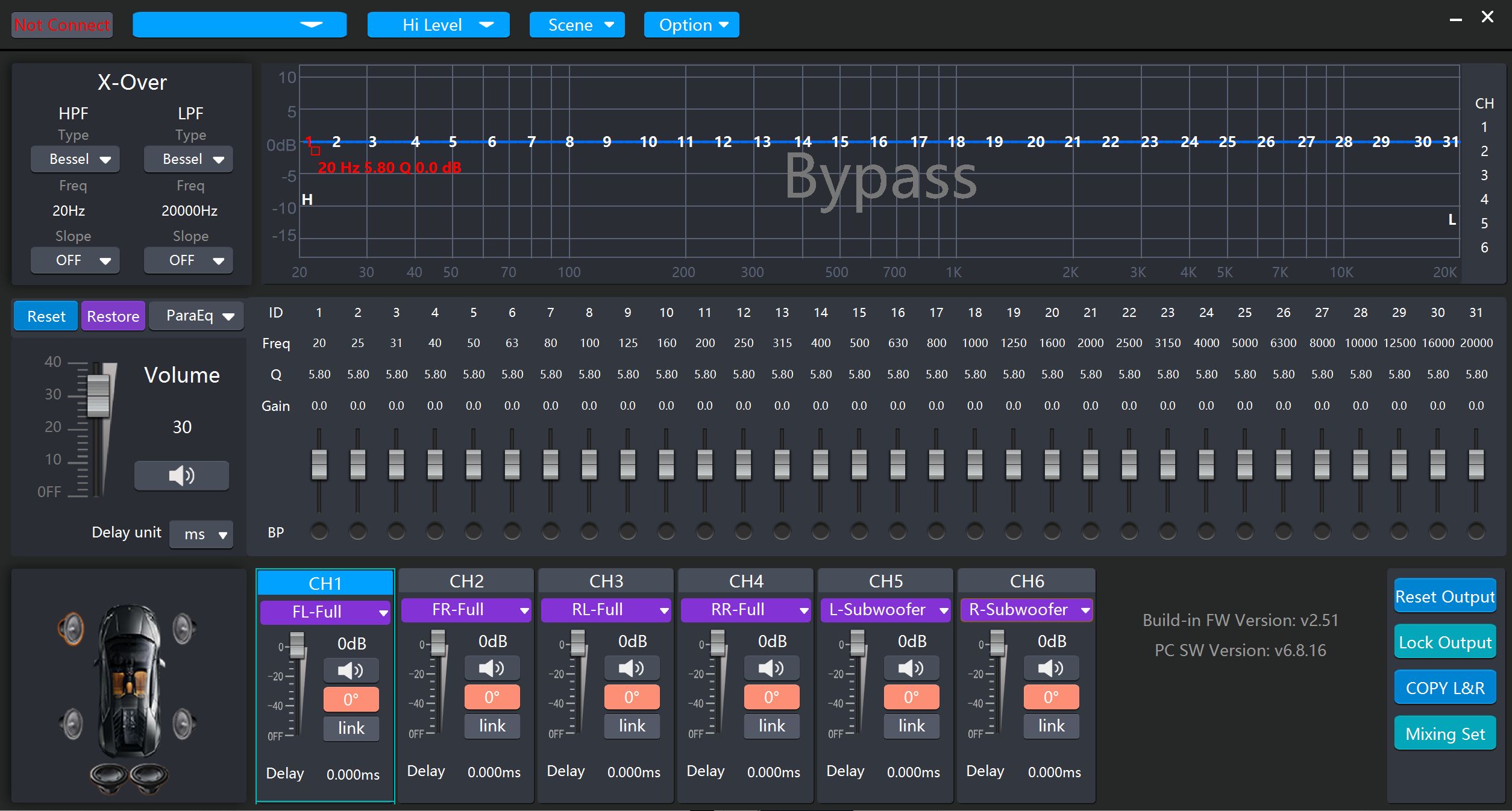

APP DSP Tuning vs PC DSP Tuning

Traditional DSP processors required laptop tuning only.

Modern DSP systems now support APP wireless tuning through Bluetooth connection.

Advantages of APP DSP tuning:

- Faster adjustment

- Real-time tuning

- Easier operation

- Mobile control

- Quick preset switching

DSP46U+ supports both professional PC software tuning and Bluetooth APP wireless adjustment.

Common DSP Tuning Mistakes

### Excessive Bass Boost

Too much bass adjustment may damage speakers and reduce sound clarity.

### Incorrect Crossover Settings

Wrong crossover frequencies can cause distortion and muddy sound.

### Ignoring Time Alignment

Delay adjustment is essential for proper stereo imaging.

### Tuning at High Volume

Always tune DSP settings at moderate listening levels.

Recommended DSP Processor for Beginners

For beginners looking for easy DSP tuning, compact DSP processors with APP control and PC software provide the best user experience.

DSP46U+ features:

- 31-band EQ adjustment

- Bluetooth 5.1 streaming

- APP wireless tuning

- PC professional tuning software

- Optical input

- USB audio playback

- 6-channel RCA output

- Compact mini-size design

The combination of APP control and professional DSP tuning software makes it suitable for both beginners and advanced users.

Final Thoughts

DSP tuning is one of the most effective ways to improve car audio sound quality.

By properly adjusting EQ, crossover, delay, slope, and channel routing, users can achieve cleaner vocals, stronger bass, and better sound staging.

Modern DSP processors with APP control and PC software make car audio tuning easier than ever before.
