DSP810
AudioWinner
| Quantity: | |
|---|---|

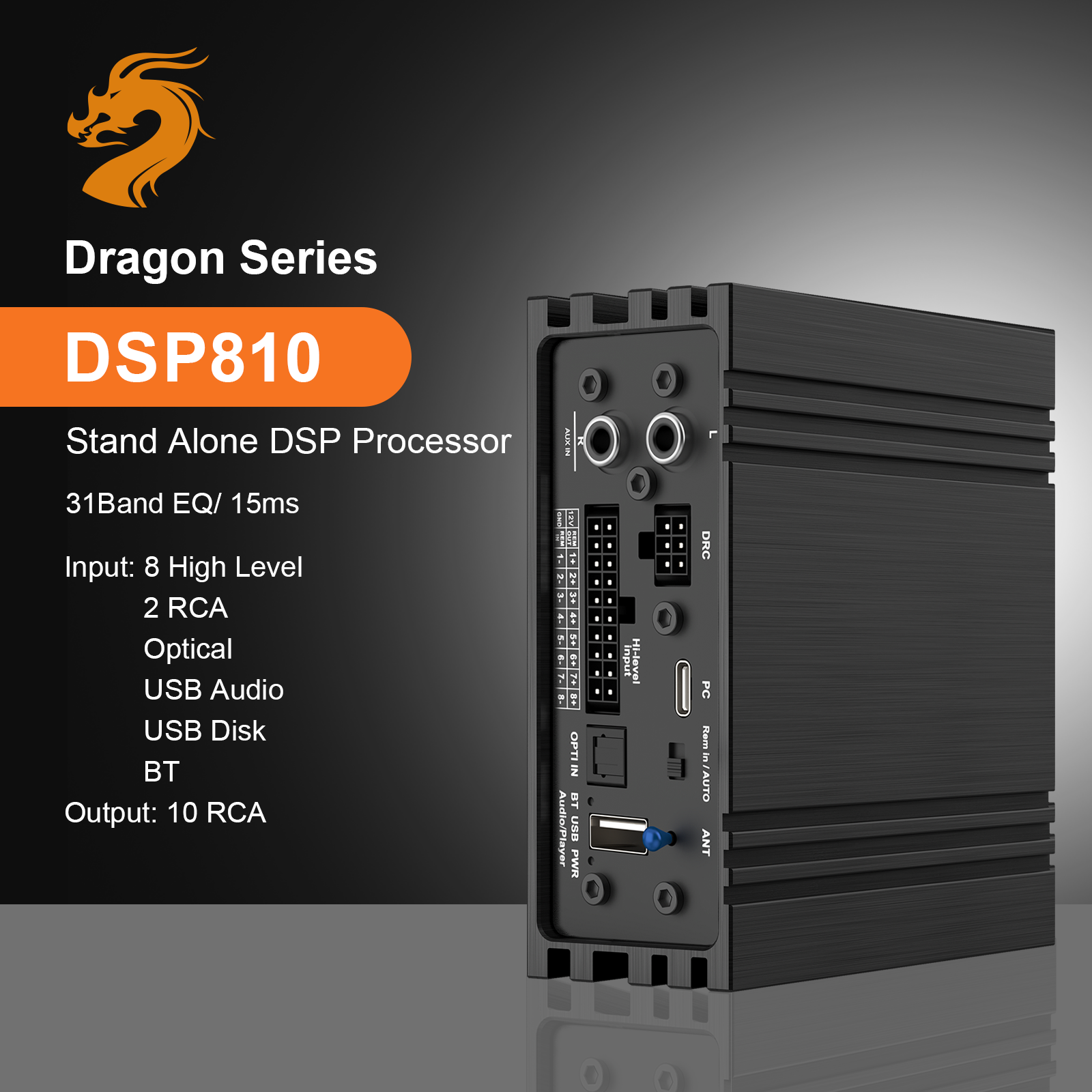

AudioWinner DSP810 is a stand-alone DSP processor designed for car audio upgrade projects that need flexible input, 10-channel RCA output and precise sound tuning. It is suitable for installers, car audio brands and OEM/ODM customers who need a compact DSP platform for sample evaluation and bulk projects.
8-in 10-out DSP structure: supports multi-channel car audio system upgrades with 10 RCA outputs.
Multiple input options: supports high-level input, RCA input, optical input, USB audio, USB disk playback and Bluetooth.
Precise tuning control: 31-band EQ, crossover, phase and 15ms time alignment help installers tune the system more accurately.
Easy control: supports PC software, Android app, iOS app and optional wired controller.
B2B project friendly: suitable for sample testing, dealer sales and bulk car audio upgrade projects.

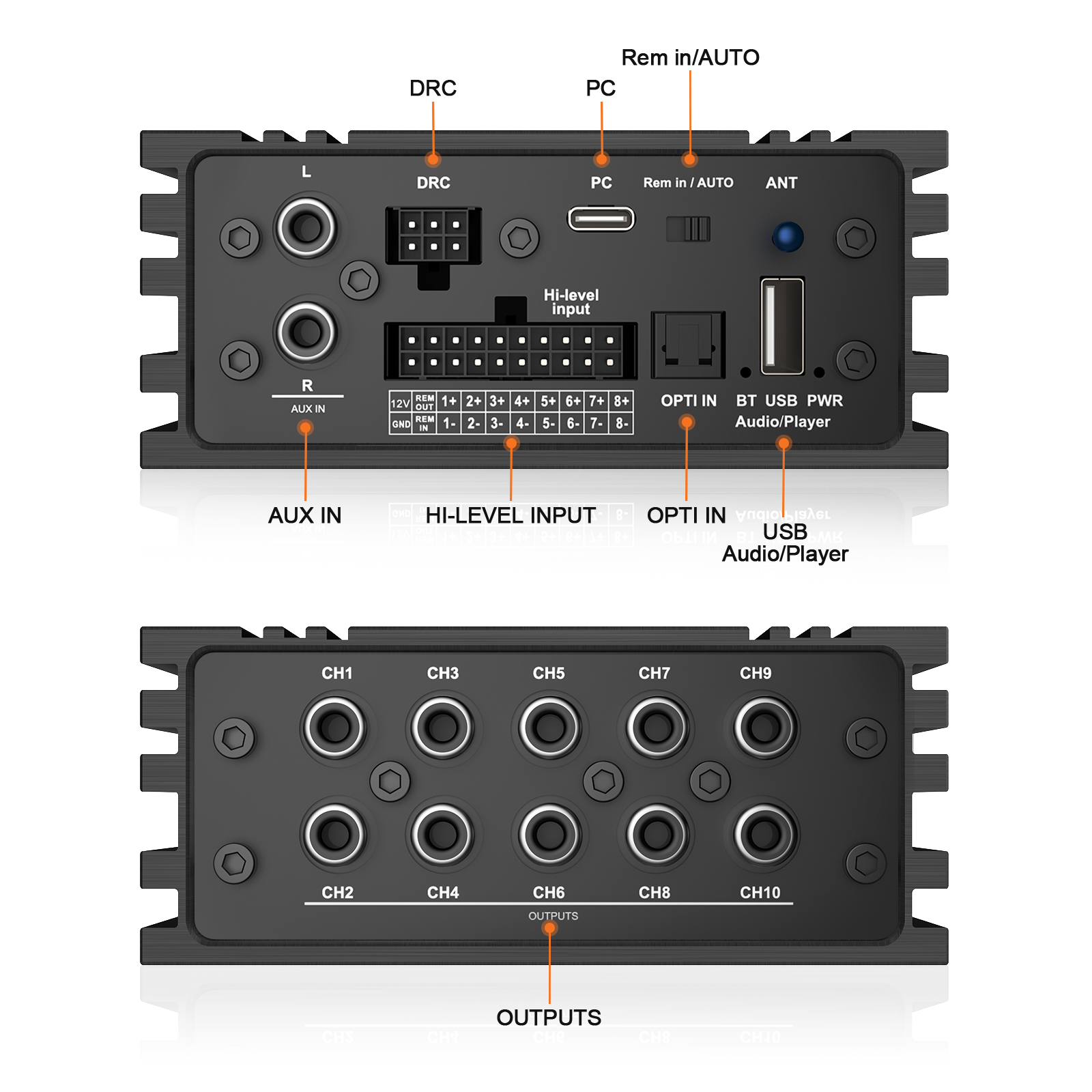

DSP810 can connect with factory head units, aftermarket head units and external amplifiers. The processor supports 8-channel high-level input, 2-channel RCA input, optical input and USB audio input, giving installers more flexibility when building different car audio systems.

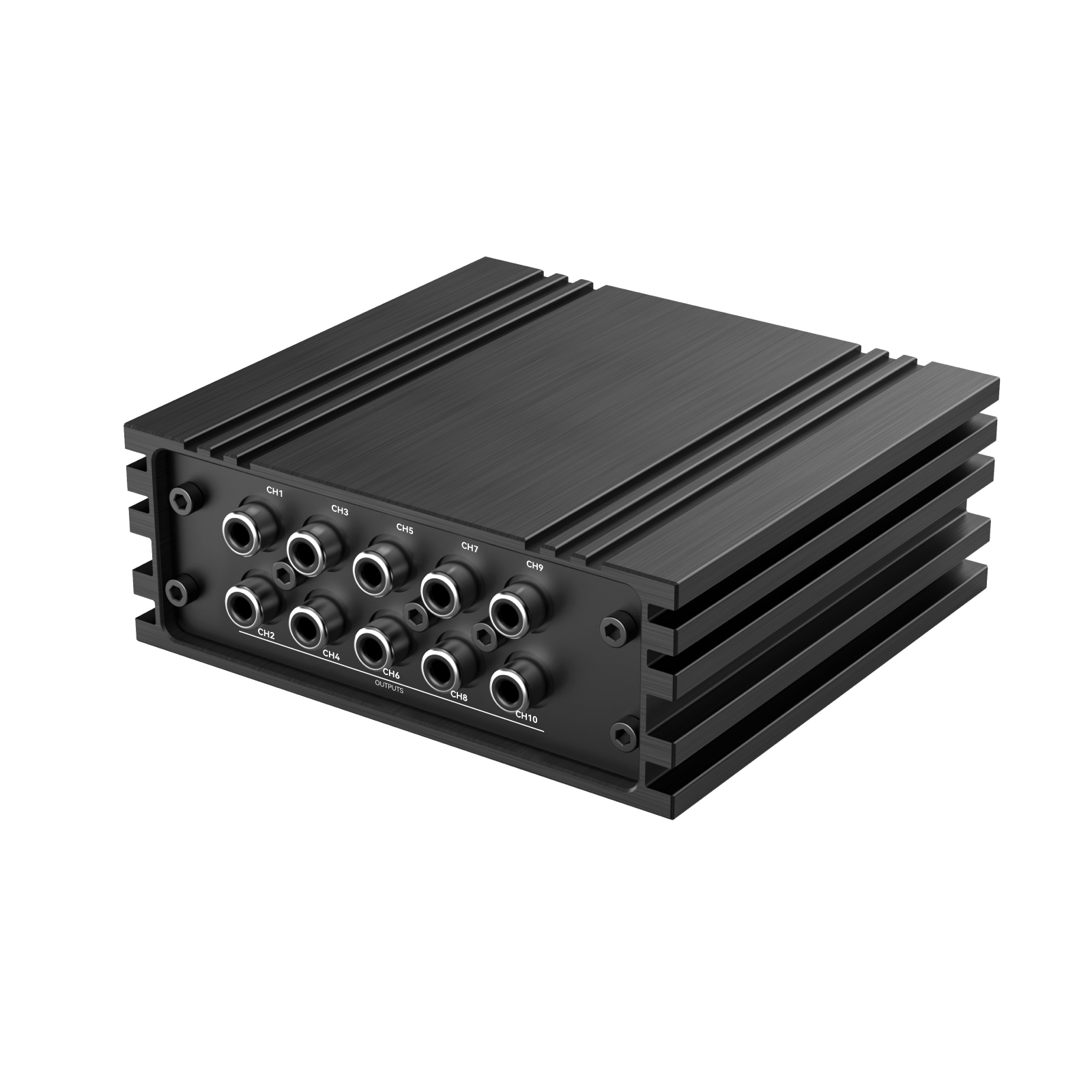

DSP810 provides 10 RCA outputs, making it suitable for active speaker systems, multi-amplifier layouts and car audio projects that require more tuning channels than basic DSP models.

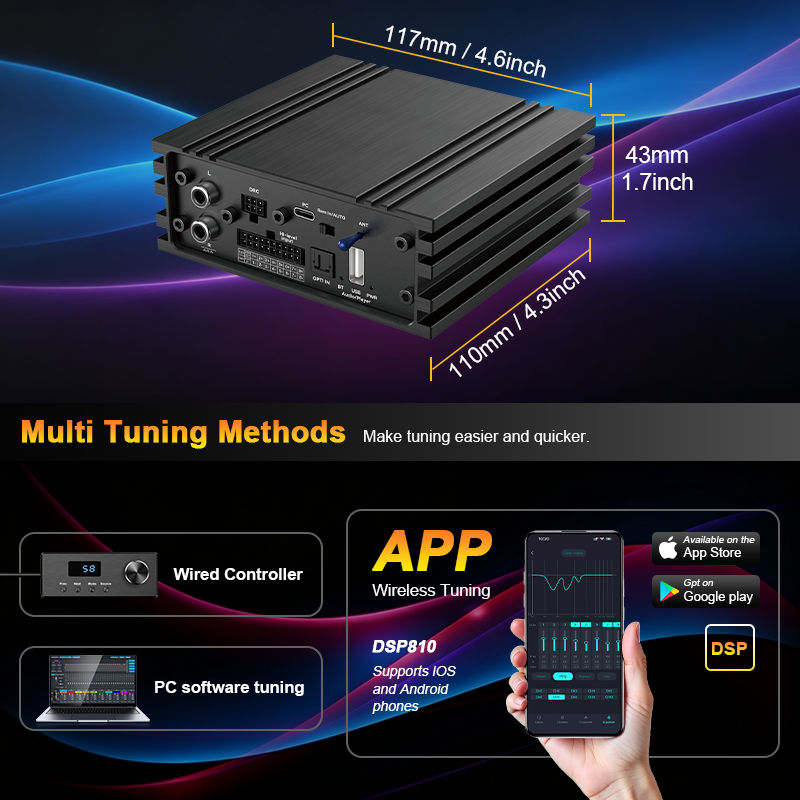

DSP810 supports PC software and mobile app control. Installers can adjust EQ, crossover, phase, output level and time alignment according to the vehicle, speaker position and customer sound preference.
31-band EQ
15ms time alignment
Butterworth, Bessel and Linkwitz-Riley filters
6dB/oct to 48dB/oct filter slope
10 presets

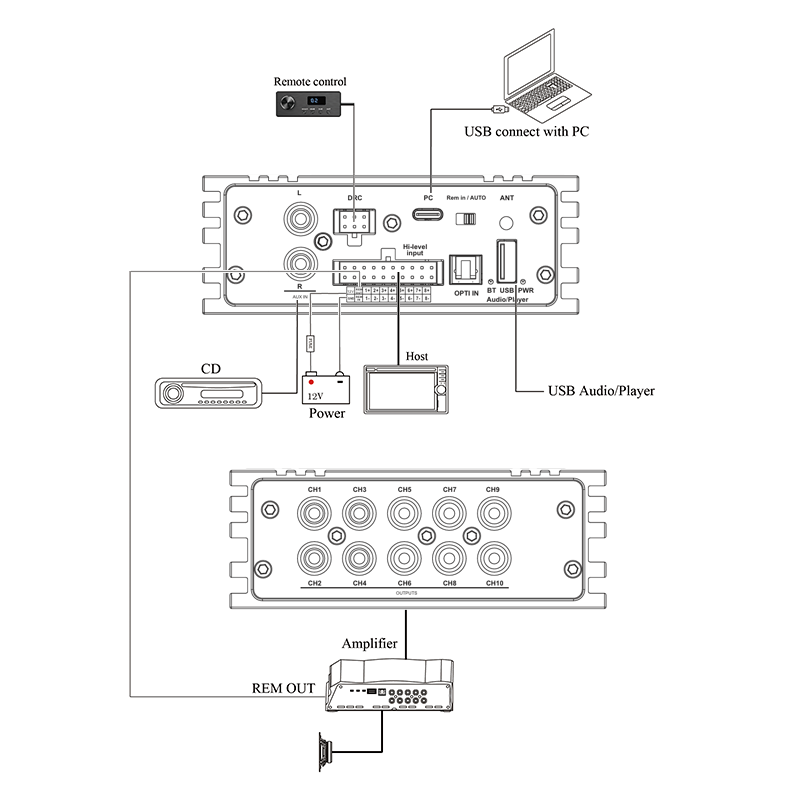

The diagram below shows a typical DSP810 car audio system connection. It helps customers understand how the DSP processor works with the head unit, amplifier and speakers.

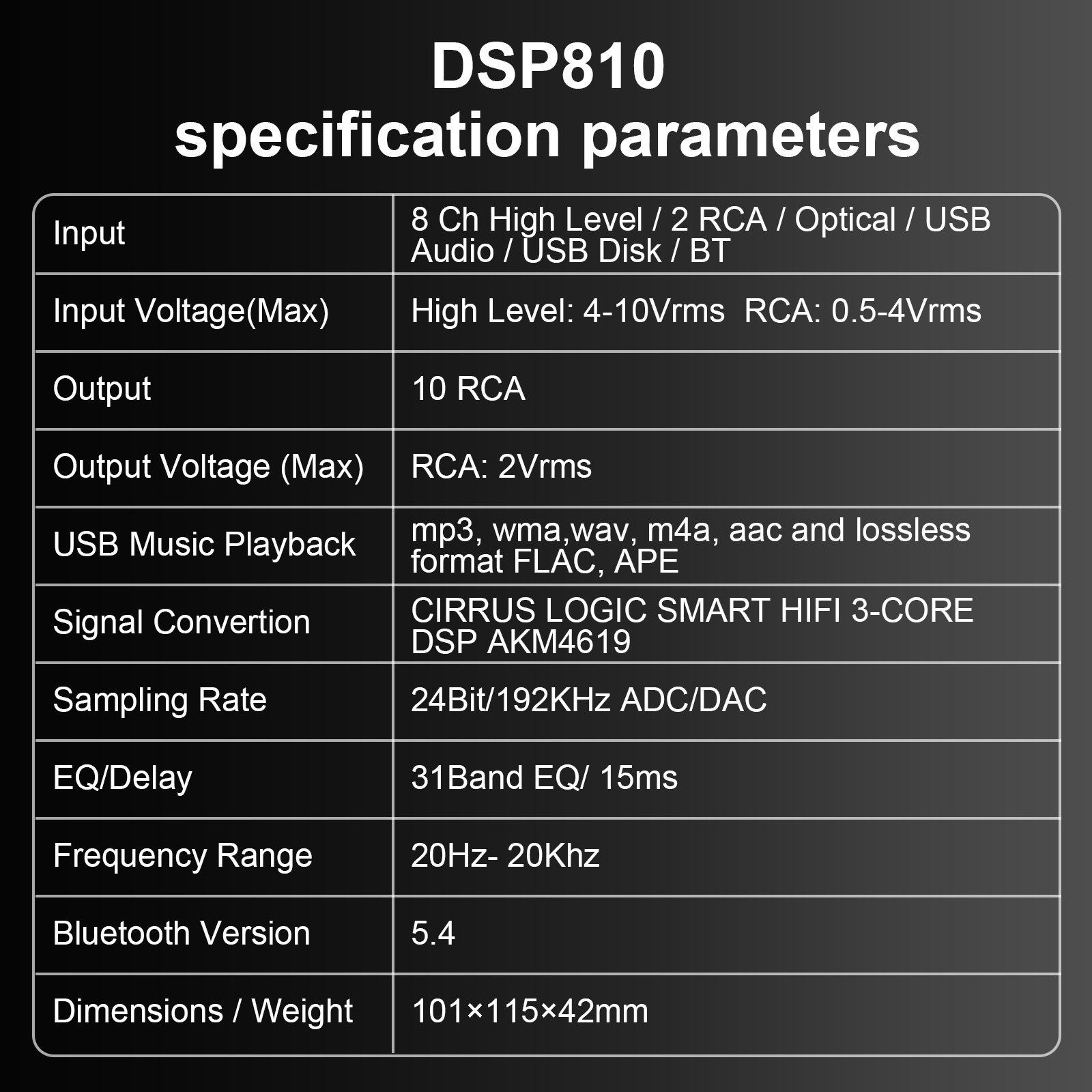

DSP810 uses a DSP-based digital signal processing platform with 24bit/192kHz ADC/DAC conversion. It is designed for stable car audio tuning, signal routing and equalizer adjustment in aftermarket and OEM/ODM projects.
Car audio installers needing a compact 8-in 10-out DSP processor
Dealers who need a sample model for B2B customer demonstrations
OEM/ODM projects requiring app control and flexible DSP tuning
Car audio systems using external amplifiers and RCA output tuning
DSP810 is a DSP processor without built-in power amplifier output.
External amplifiers are required to drive speakers.
Bluetooth 5.4 is supported. Actual wireless audio performance also depends on the source device.
USB audio and USB disk playback are supported according to the product specification.
For bulk orders, please confirm packaging, cable requirements and project quantity before production.

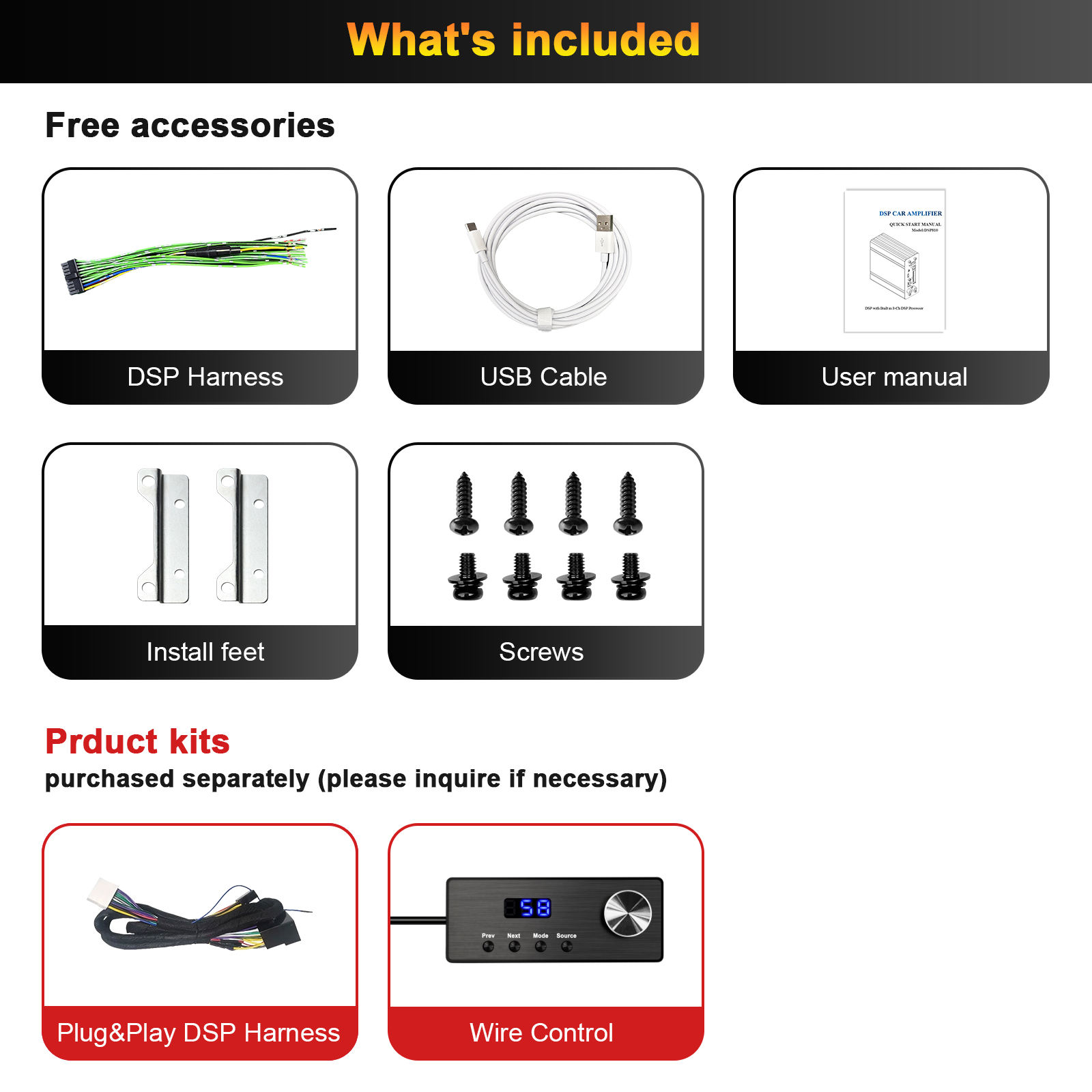

The standard package includes the DSP unit and basic accessories for sample evaluation. Optional accessories can be confirmed according to project requirements.
DSP harness
USB cable
English user manual
Mounting feet
Screws
Optional plug-and-play DSP harness
Optional wired controller

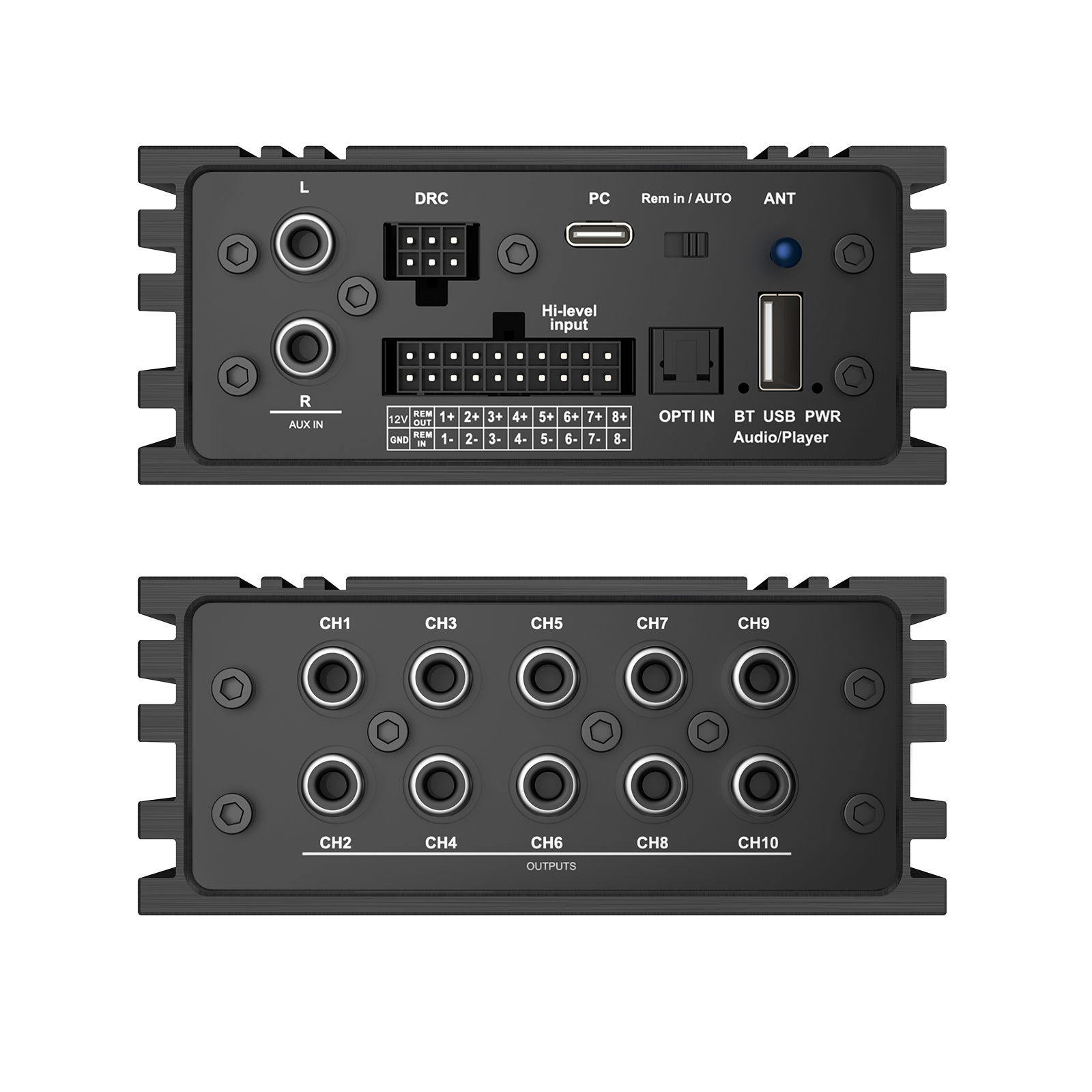

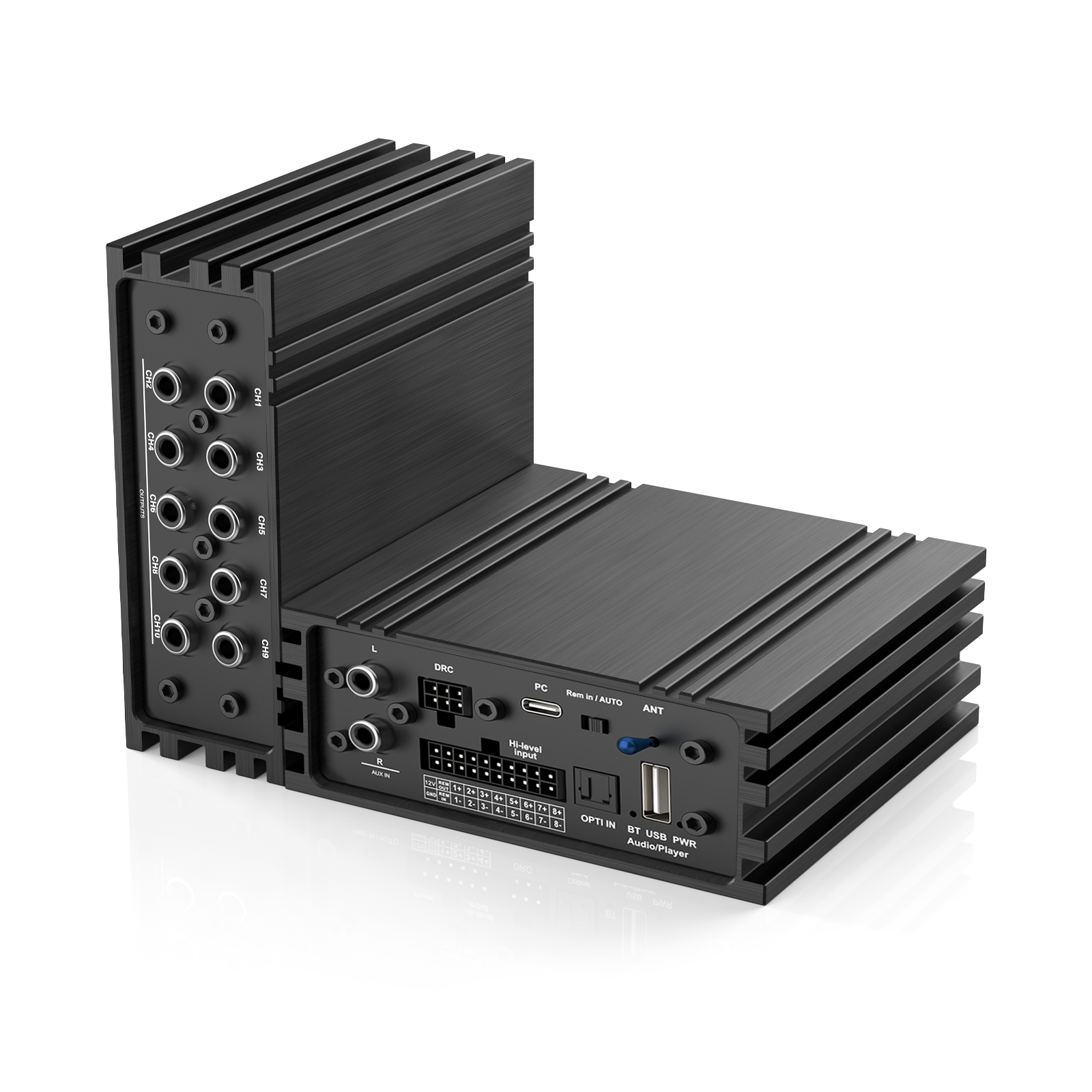

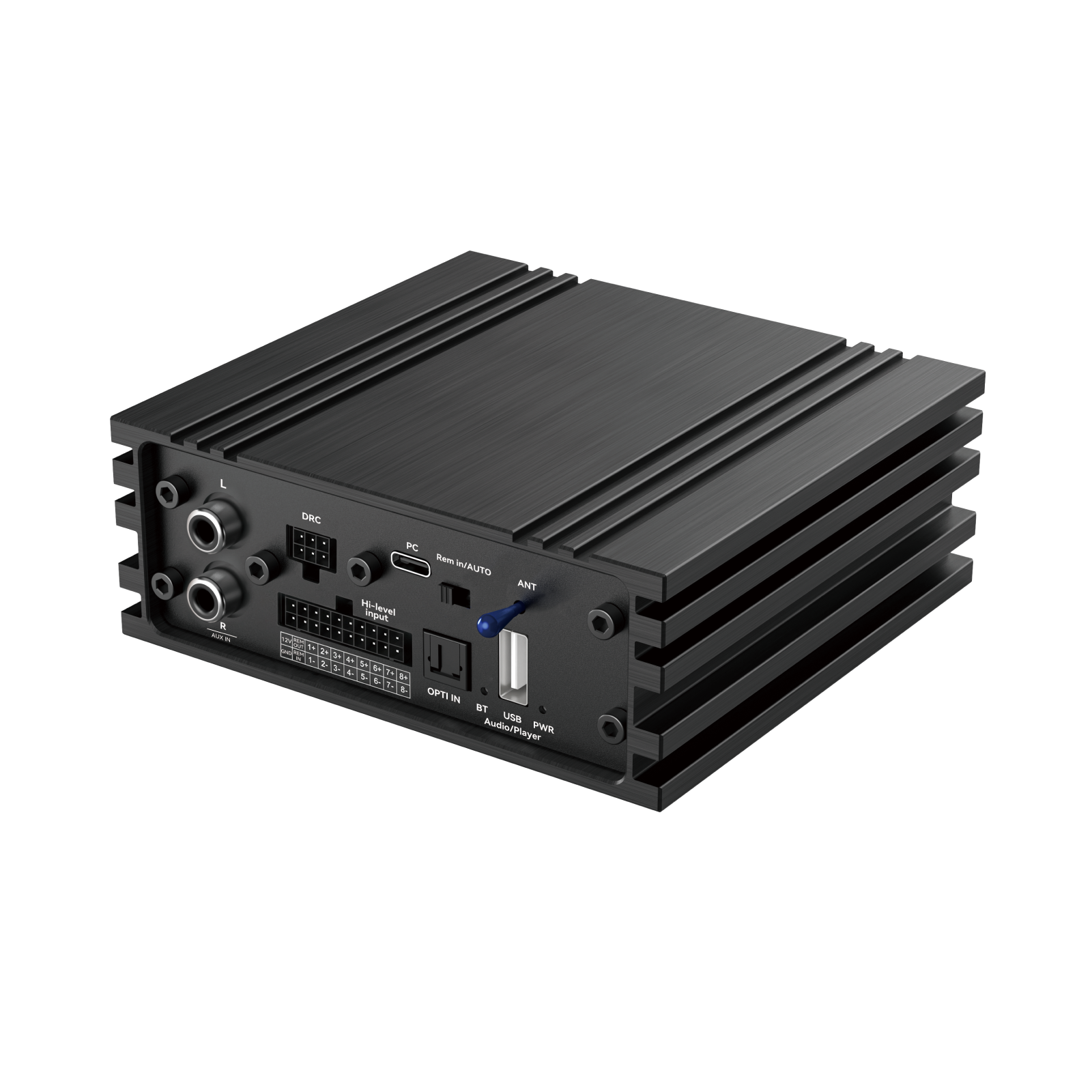

The product images below show the DSP810 housing, front panel, rear panel and RCA output layout for customer reference before sample purchase or project quotation.
