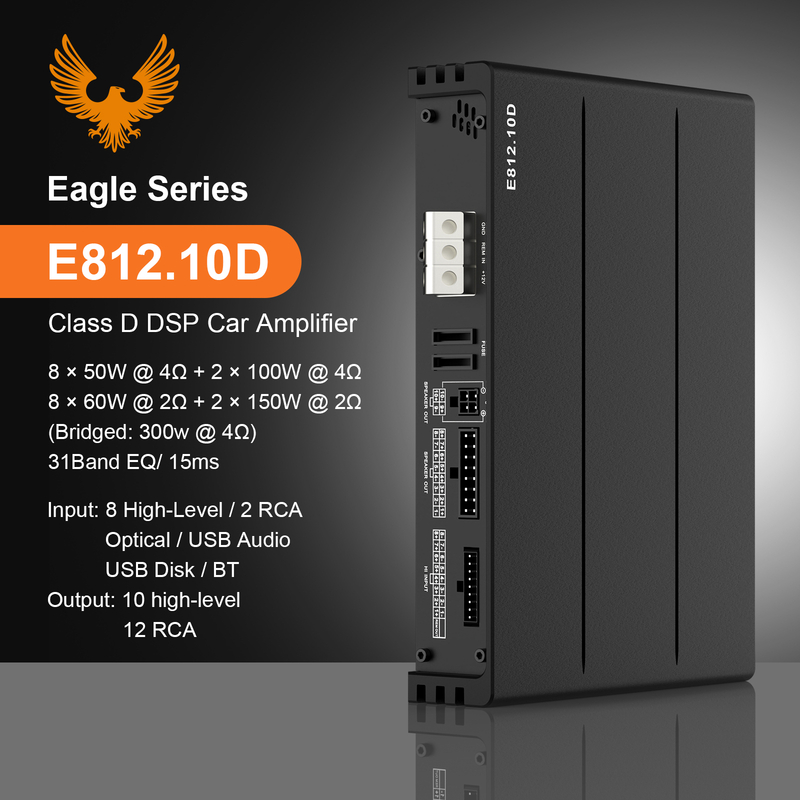

E812.10D
AUDIOWINNER
| rms power : | |
|---|---|
| Quantity: | |

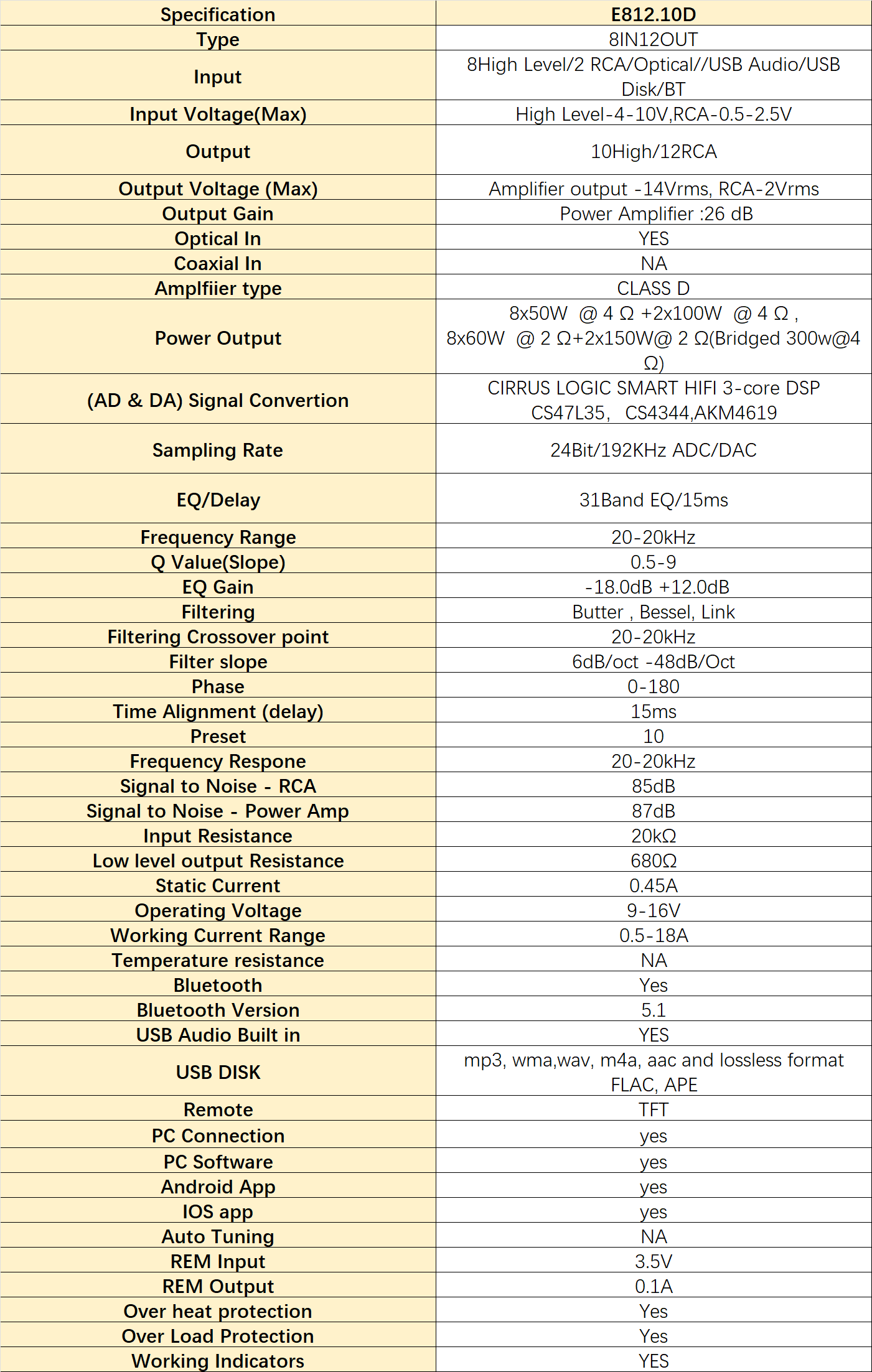

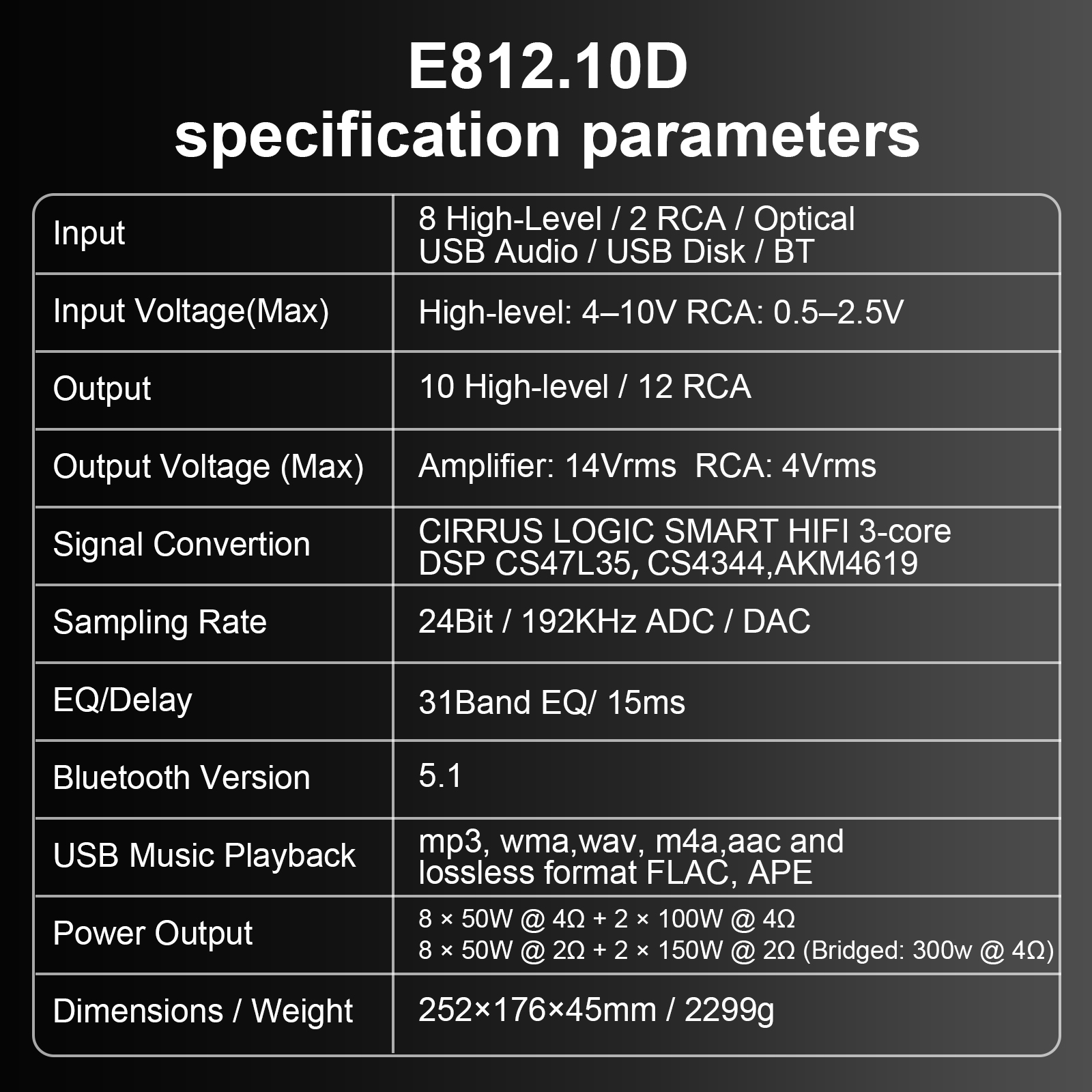

| Specification | E812.10D |
| Input | 8High Level/2 RCA/Optical//USB Audio/USB Disk/BT |
| Input Voltage(Max) | High Level-4-10V,RCA-0.5-2.5V |
| Output | 10High/12RCA |
| Output Voltage (Max) | Amplifier output -14Vrms, RCA-2Vrms |
| Output Gain | Power Amplifier :26 dB |
| Optical In | YES |
| Coaxial In | NA |
| Amplfiier type | CLASS D |
| Power Output | 8x50W @ 4 Ω +2x100W @ 4 Ω , 8x60W @ 2 Ω+2x150W@ 2 Ω(Bridged 300w@4Ω) |
| (AD & DA) Signal Convertion | CIRRUS LOGIC SMART HIFI 3-core DSP CS47L35，CS4344,AKM4619 |
| Sampling Rate | 24Bit/192KHz ADC/DAC |
| EQ/Delay | 31Band EQ/15ms |
| Frequency Range | 20-20kHz |
| Q Value(Slope) | 0.5-9 |
| EQ Gain | -18.0dB +12.0dB |
| Filtering | Butter , Bessel, Link |
| Filtering Crossover point | 20-20kHz |
| Filter slope | 6dB/oct -48dB/Oct |
| Phase | 0-180 |
| Time Alignment (delay) | 15ms |
| Preset | 10 |
| Frequency Respone | 20-20kHz |
| Signal to Noise - RCA | 85dB |
| Signal to Noise - Power Amp | 87dB |
| Input Resistance | 20kΩ |
| Low level output Resistance | 680Ω |
| Static Current | 0.45A |
| Operating Voltage | 9-16V |
| Working Current Range | 0.5-18A |
| Temperature resistance | NA |
| Bluetooth | Yes |
| Bluetooth Version | 5.1 |
| USB Audio Built in | YES |
| USB DISK | mp3, wma,wav, m4a, aac and lossless format FLAC, APE |
| Remote | LCD |
| PC Connection | yes |
| PC Software | yes |
| Android App | yes |
| IOS app | yes |
| Auto Tuning | NA |
| REM Input | 3.5V |
| REM Output | 0.1A |
| Over heat protection | Yes |
| Over Load Protection | Yes |
| Working Indicators | YES |
| Specification | E812.10D |
| Input | 8High Level/2 RCA/Optical//USB Audio/USB Disk/BT |
| Input Voltage(Max) | High Level-4-10V,RCA-0.5-2.5V |
| Output | 10High/12RCA |
| Output Voltage (Max) | Amplifier output -14Vrms, RCA-2Vrms |
| Output Gain | Power Amplifier :26 dB |
| Optical In | YES |
| Coaxial In | NA |
| Amplfiier type | CLASS D |
| Power Output | 8x50W @ 4 Ω +2x100W @ 4 Ω , 8x60W @ 2 Ω+2x150W@ 2 Ω(Bridged 300w@4Ω) |
| (AD & DA) Signal Convertion | CIRRUS LOGIC SMART HIFI 3-core DSP CS47L35，CS4344,AKM4619 |
| Sampling Rate | 24Bit/192KHz ADC/DAC |
| EQ/Delay | 31Band EQ/15ms |
| Frequency Range | 20-20kHz |
| Q Value(Slope) | 0.5-9 |
| EQ Gain | -18.0dB +12.0dB |
| Filtering | Butter , Bessel, Link |
| Filtering Crossover point | 20-20kHz |
| Filter slope | 6dB/oct -48dB/Oct |
| Phase | 0-180 |
| Time Alignment (delay) | 15ms |
| Preset | 10 |
| Frequency Respone | 20-20kHz |
| Signal to Noise - RCA | 85dB |
| Signal to Noise - Power Amp | 87dB |
| Input Resistance | 20kΩ |
| Low level output Resistance | 680Ω |
| Static Current | 0.45A |
| Operating Voltage | 9-16V |
| Working Current Range | 0.5-18A |
| Temperature resistance | NA |
| Bluetooth | Yes |
| Bluetooth Version | 5.1 |
| USB Audio Built in | YES |
| USB DISK | mp3, wma,wav, m4a, aac and lossless format FLAC, APE |
| Remote | LCD |
| PC Connection | yes |
| PC Software | yes |
| Android App | yes |
| IOS app | yes |
| Auto Tuning | NA |
| REM Input | 3.5V |
| REM Output | 0.1A |
| Over heat protection | Yes |
| Over Load Protection | Yes |
| Working Indicators | YES |
