T1216.12H
AudioWinner
| Quantity: | |
|---|---|
The AudioWinner T1216.12H integrates a 16-channel DSP processor and a high-power 12-channel Class D amplifier in one unit. Designed for complex active car audio systems, it provides flexible signal routing, precise tuning and powerful multi-channel output.

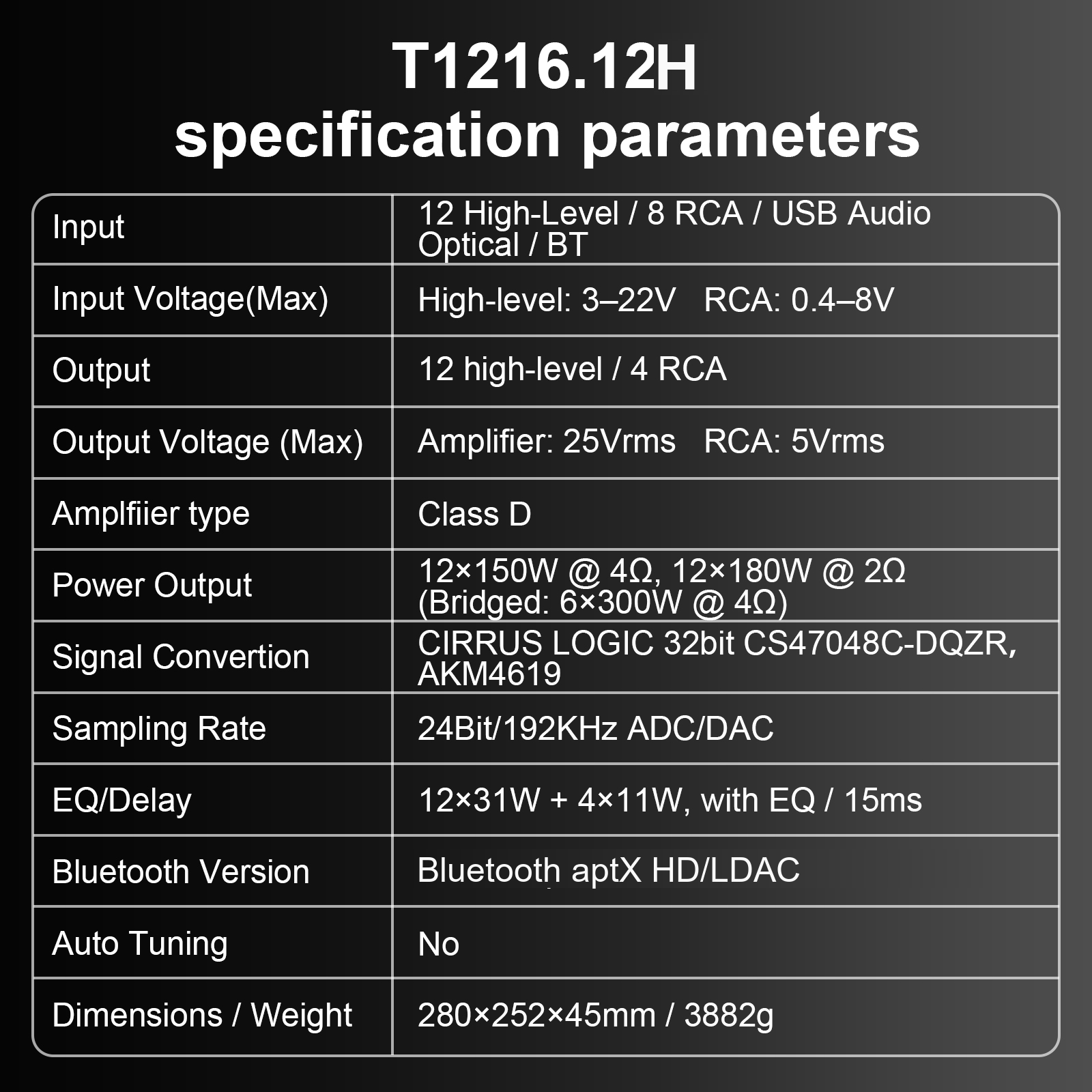

Key Features
• 12 input channels and 16 processed output channels
• 12×150W RMS at 4Ω
• 12×180W RMS at 2Ω
• 6×300W bridged output at 4Ω
• 24-bit/192kHz ADC and DAC
• 31-band EQ and up to 15ms time alignment
• Optical input and USB audio
• Bluetooth aptX HD/LDAC
• PC, Android and iOS tuning
• 10 tuning presets
• Optional plug-and-play harness and wired controller
The built-in Class D amplifier delivers 12×150W RMS at 4Ω and 12×180W RMS at 2Ω. Six bridged channel pairs can provide up to 6×300W RMS at 4Ω for applications requiring higher output power.

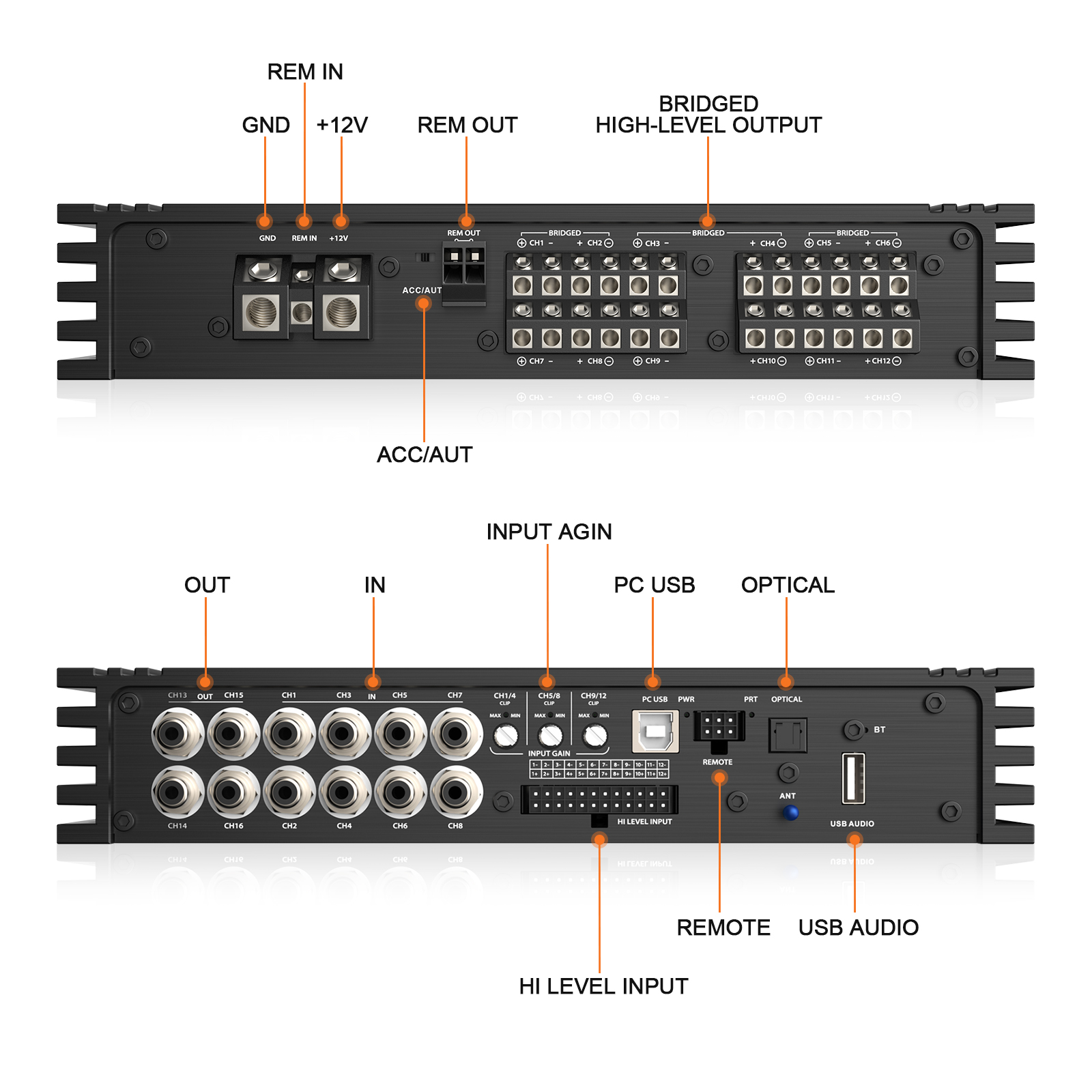

The T1216.12H provides high-level and RCA inputs for integration with factory or aftermarket head units. Optical input and USB audio are supported for digital audio sources, while 12 amplified outputs and 4 RCA outputs provide flexible system expansion.
The signal-processing section uses the Cirrus Logic CS47048 DSP platform together with AKM4619 conversion. The 24-bit/192kHz ADC and DAC architecture supports detailed digital audio processing for multi-channel car audio systems.

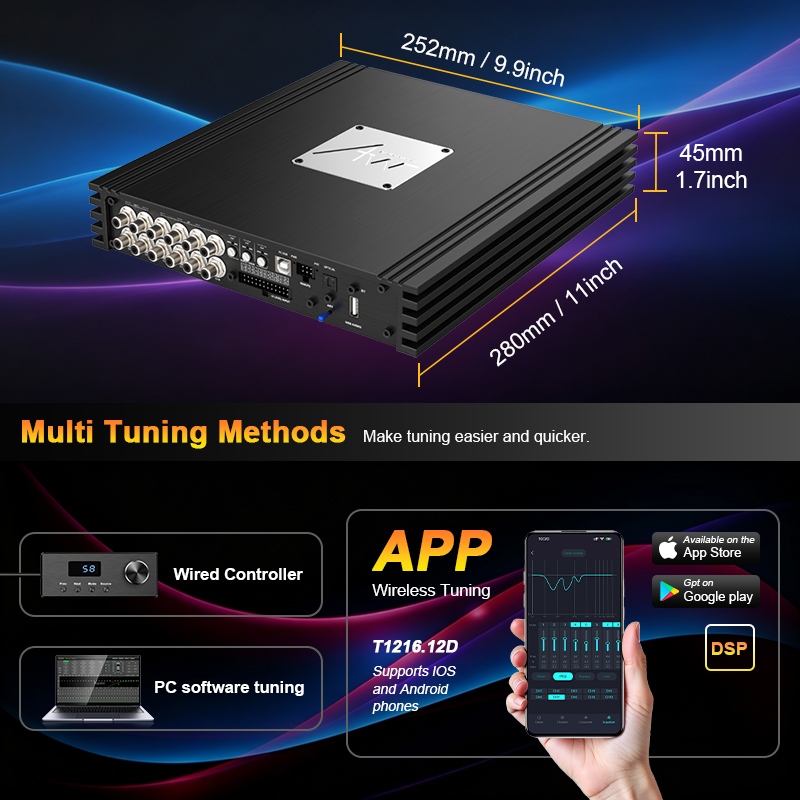

DSP settings can be adjusted through PC software and supported Android and iOS applications. Installers can configure signal routing, equalization, crossover, phase and time alignment and store up to 10 presets.

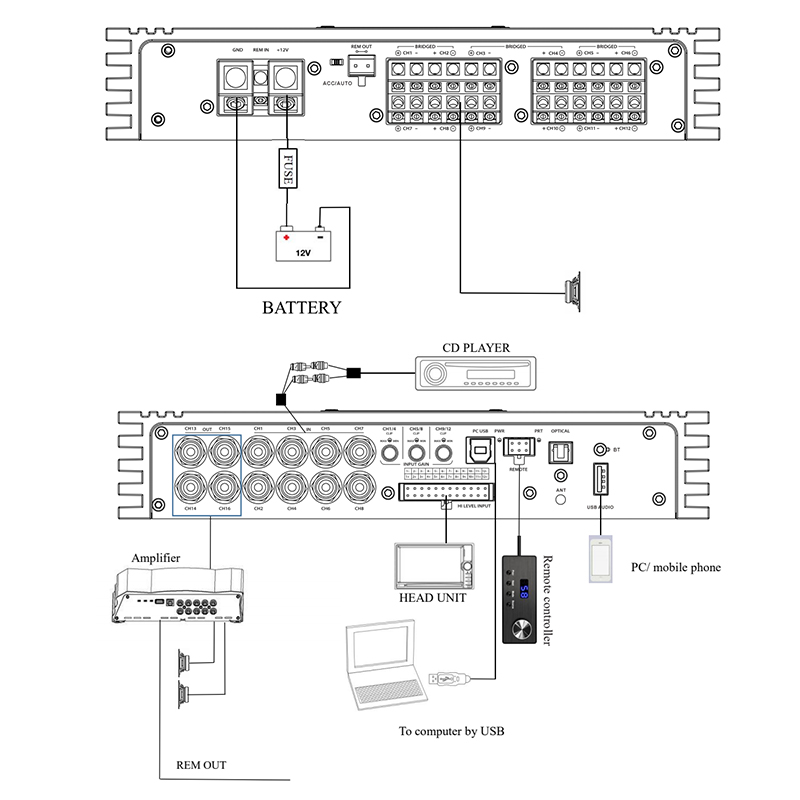

The T1216.12H supports high-level input, RCA input, optical input, USB audio and Bluetooth aptX HD/LDAC. It can be connected to factory head units, aftermarket receivers and compatible digital audio sources.

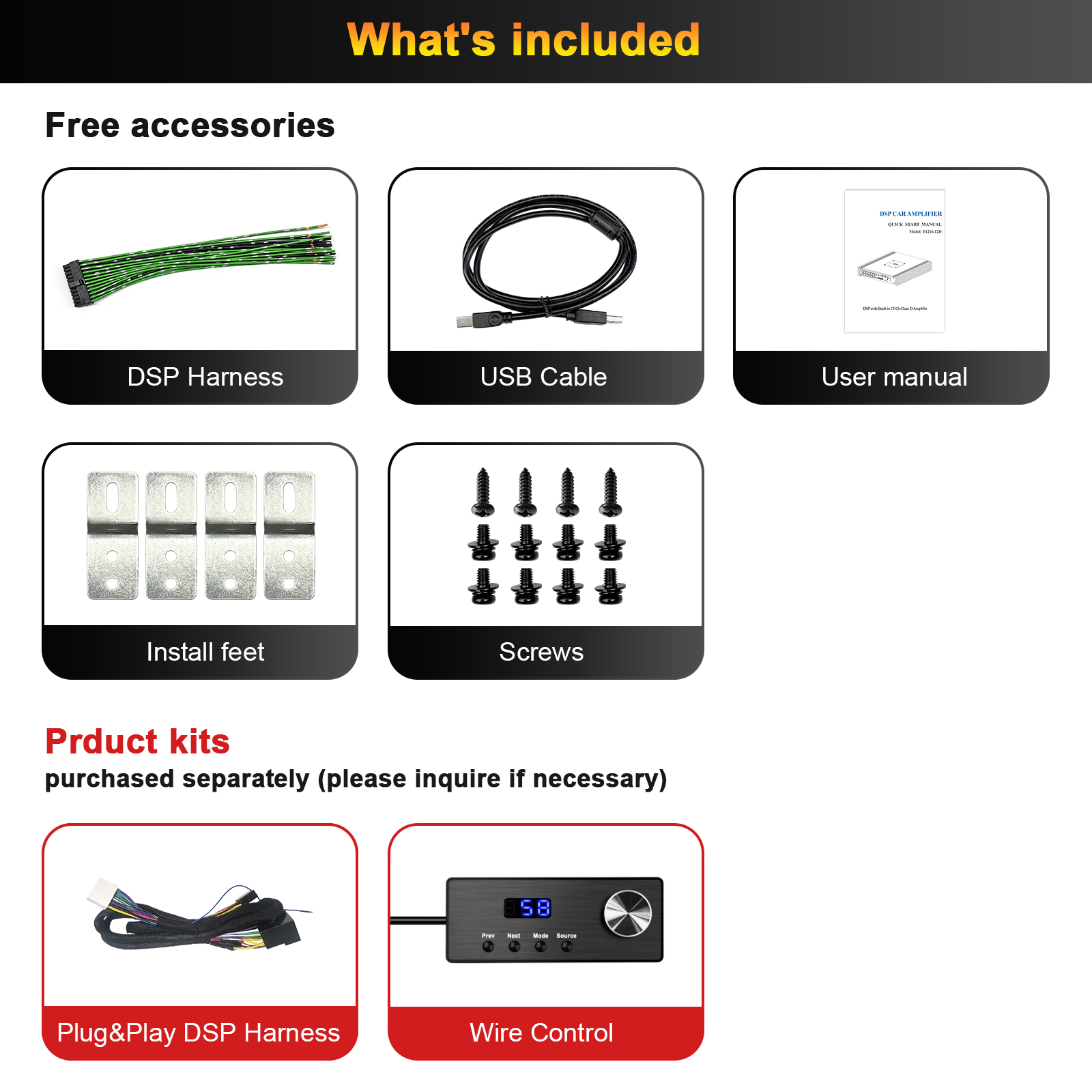

Standard accessories include the DSP harness, USB cable, user manual, installation feet and mounting screws. Plug-and-play vehicle harnesses and wired controllers are optional and should be confirmed before ordering.
