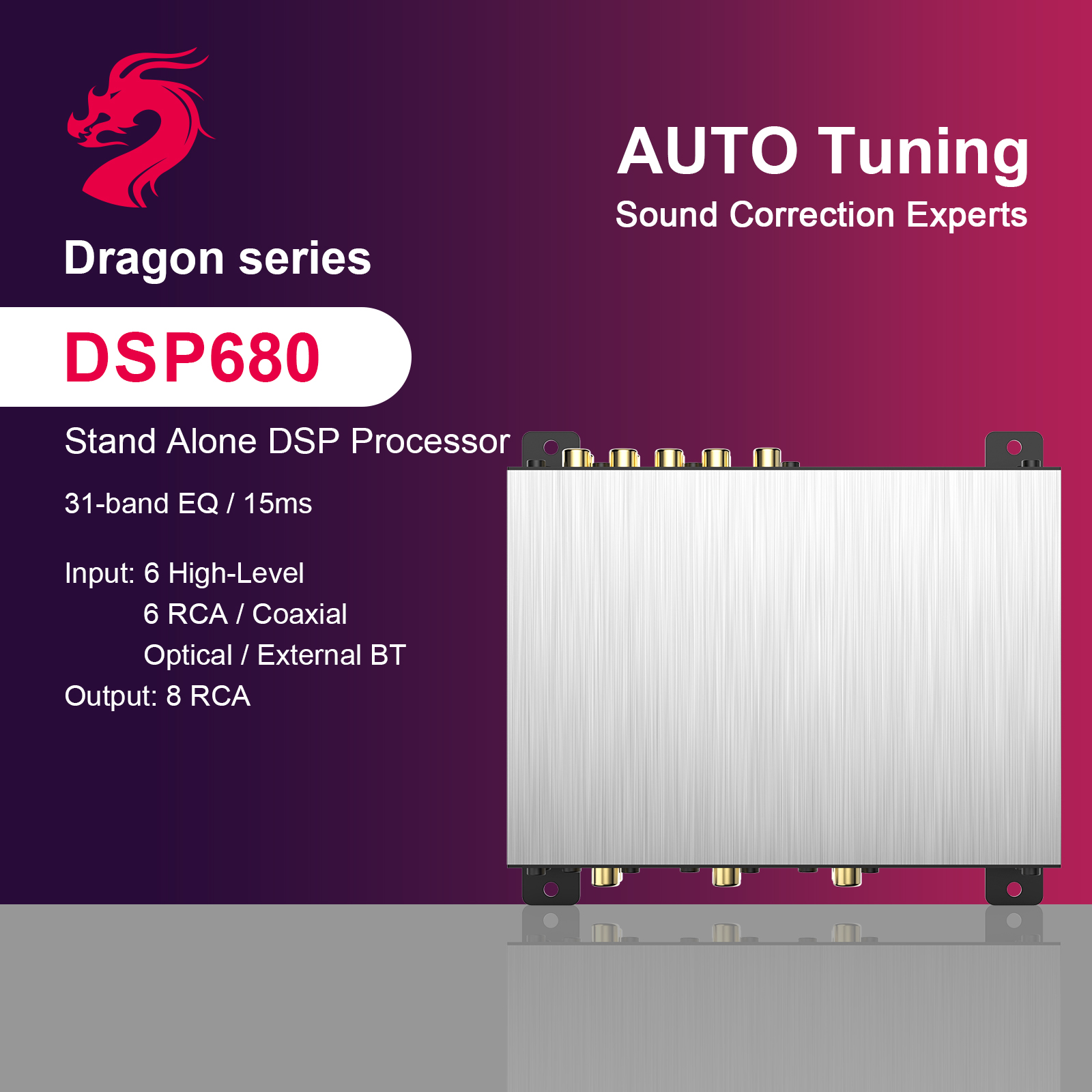

AudioWinner DSP680 6-in 8-out Auto Tuning Car Audio DSP Processor

DSP680 6-In 8-Out Auto-Tuning Car Audio DSP Processor

AudioWinner DSP680 is a standalone car audio DSP processor designed for professional systems using external amplifiers. Six high-level and six RCA inputs support integration with factory and aftermarket head units, while eight independently tunable 4Vrms RCA outputs provide flexible signal routing for multi-channel amplifier systems.

Its auto-tuning function helps installers measure and correct the vehicle's acoustic response. Optical and coaxial digital inputs, PC and mobile tuning, and optional Bluetooth 5.4 provide additional flexibility for professional car audio installations.

Why Choose DSP680

• Integrate with factory audio systems through six high-level inputs

• Connect aftermarket source units through six RCA inputs

• Add optical and coaxial digital-audio sources

• Feed external amplifiers through eight 4Vrms RCA outputs

• Use auto tuning as a faster starting point for system calibration

• Configure EQ, crossover, delay, phase and presets through PC software

• Add an optional Bluetooth 5.4 module, microphone and wired controller

Connectivity and System Integration

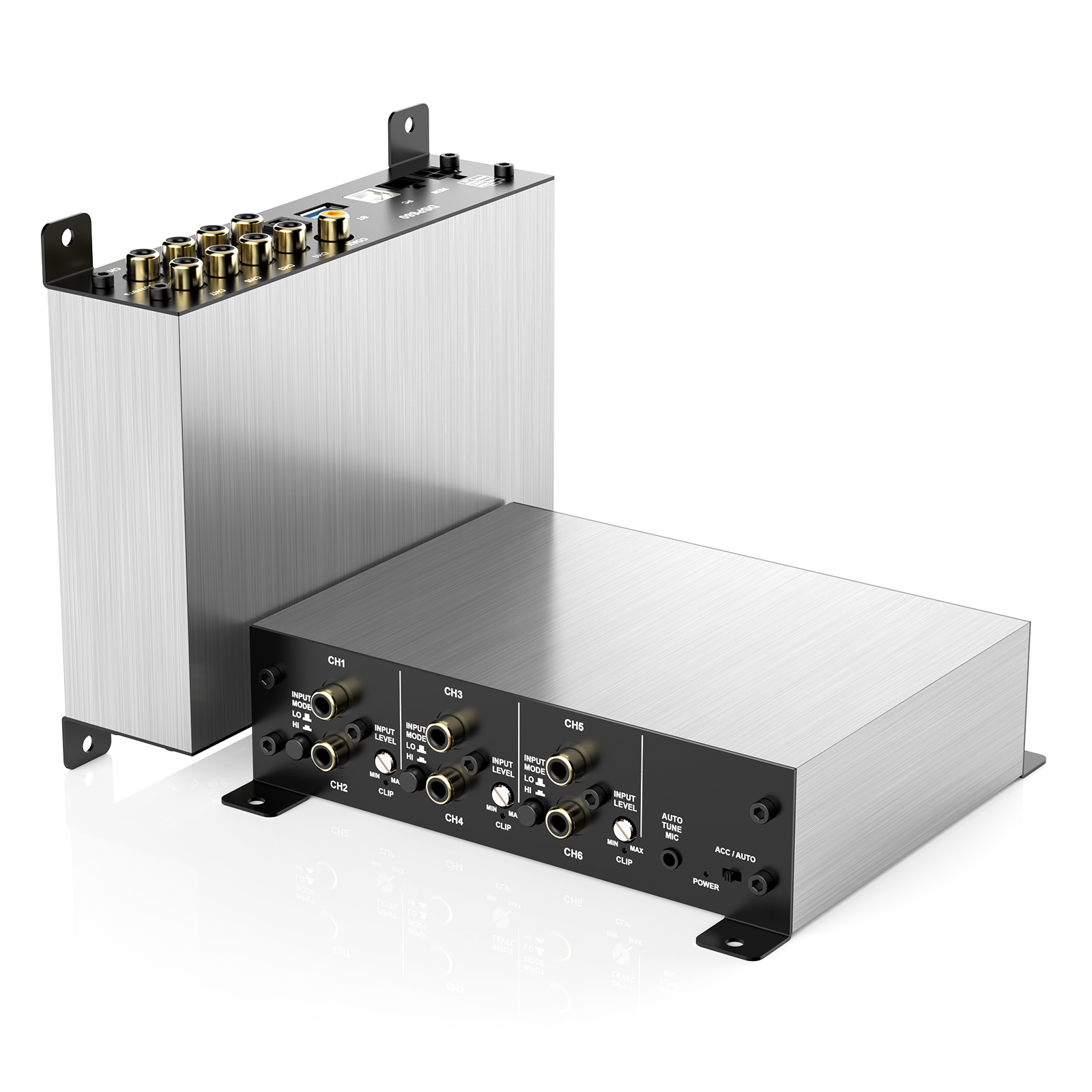

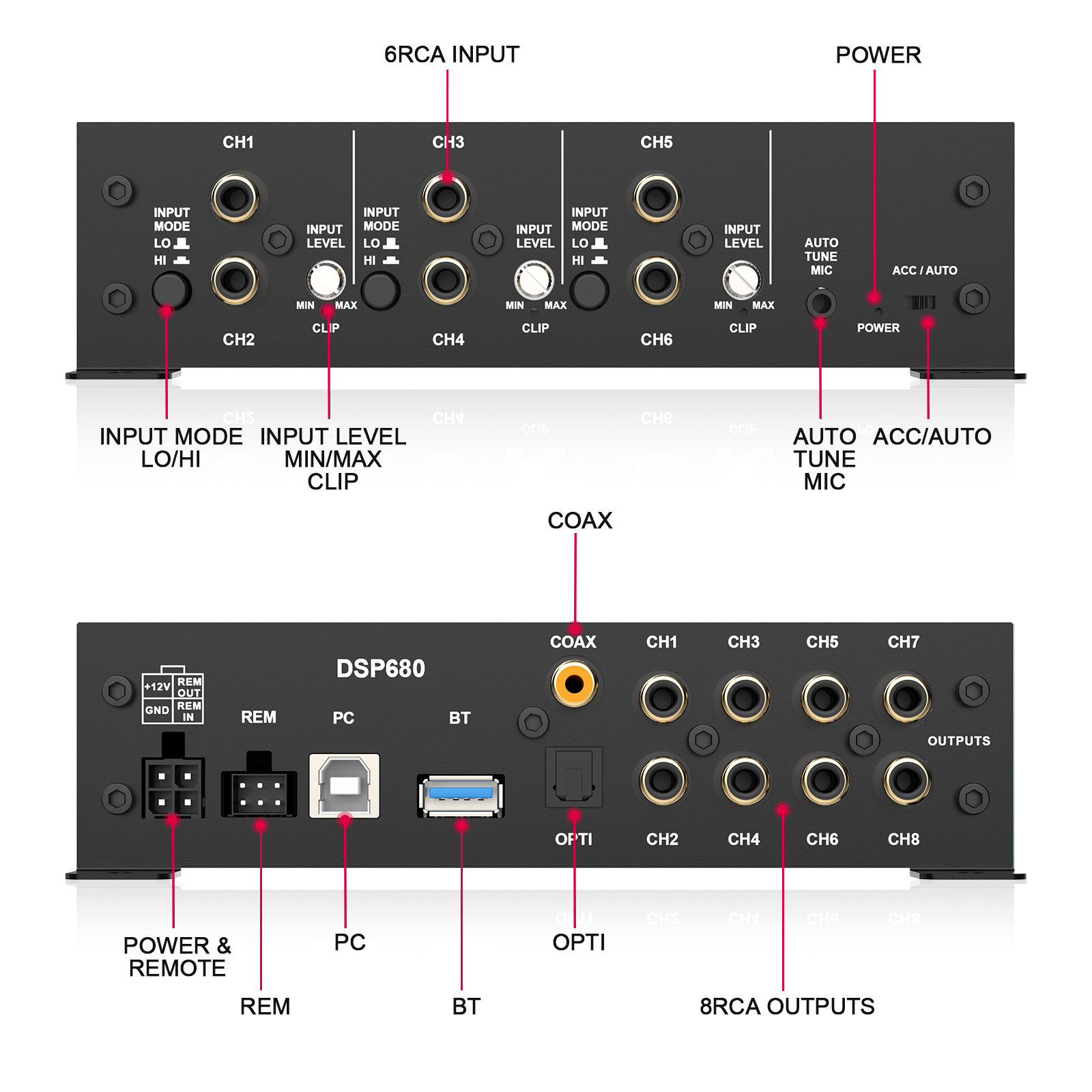

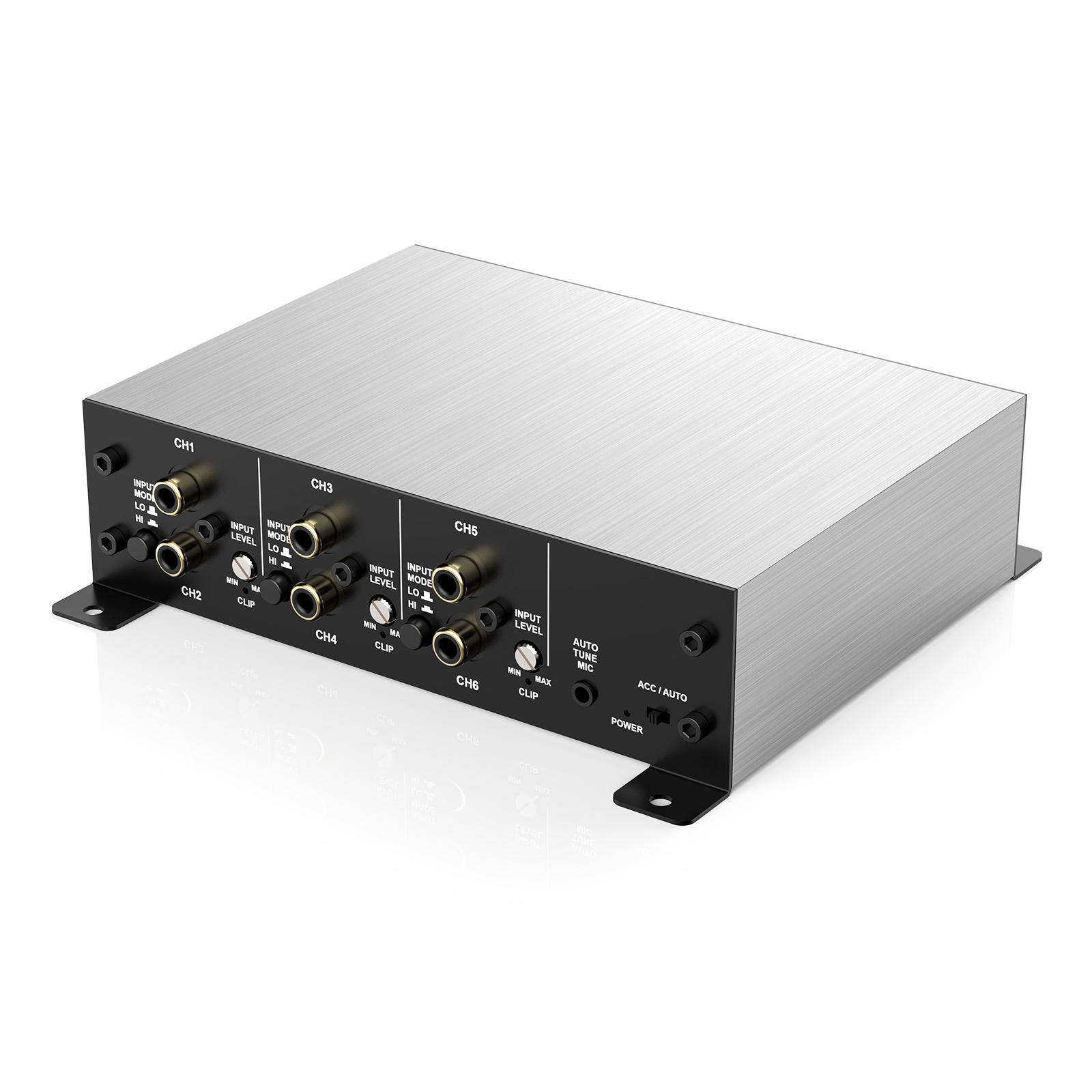

DSP680 accepts up to six high-level input channels from factory audio systems or six RCA input channels from aftermarket source units. Optical and coaxial inputs provide additional digital-audio connection options.

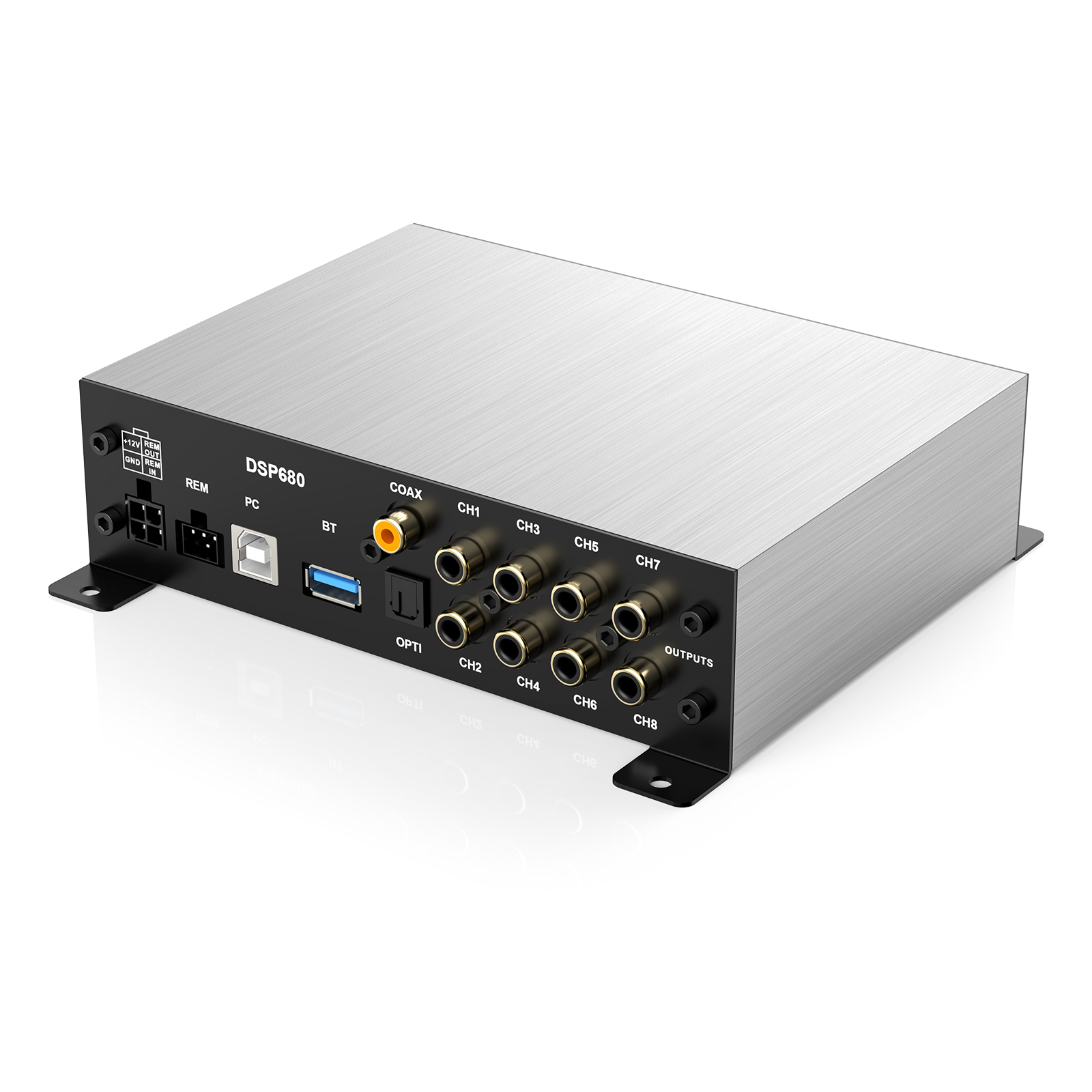

Eight independently tunable RCA outputs deliver up to 4Vrms to external power amplifiers. This makes DSP680 suitable for active multi-channel systems and installations using separate amplifiers for different speaker groups.

DSP680 processes the audio signal but does not power the speakers directly. External amplifiers are required.

Auto Tuning for Faster System Calibration

With the optional measurement microphone connected, DSP680 can measure the vehicle’s acoustic response and generate initial correction settings. This gives installers a faster starting point before completing manual fine-tuning.

The final result depends on speaker installation, microphone placement and professional adjustment. Auto tuning assists the calibration process but does not replace final listening and system verification.

Professional Tuning and Control

Each output channel can be configured according to the connected speaker and amplifier arrangement. DSP680 provides:

• 31-band equalization

• Up to 15 ms time alignment

• Crossover adjustment from 20 Hz to 20 kHz

• Butterworth, Bessel and Linkwitz-Riley filters

• Filter slopes from 6 to 48 dB/octave

• Adjustable Q values from 0.5 to 9

• EQ gain from −18 dB to +12 dB

• 0° and 180° phase selection

• Ten user presets

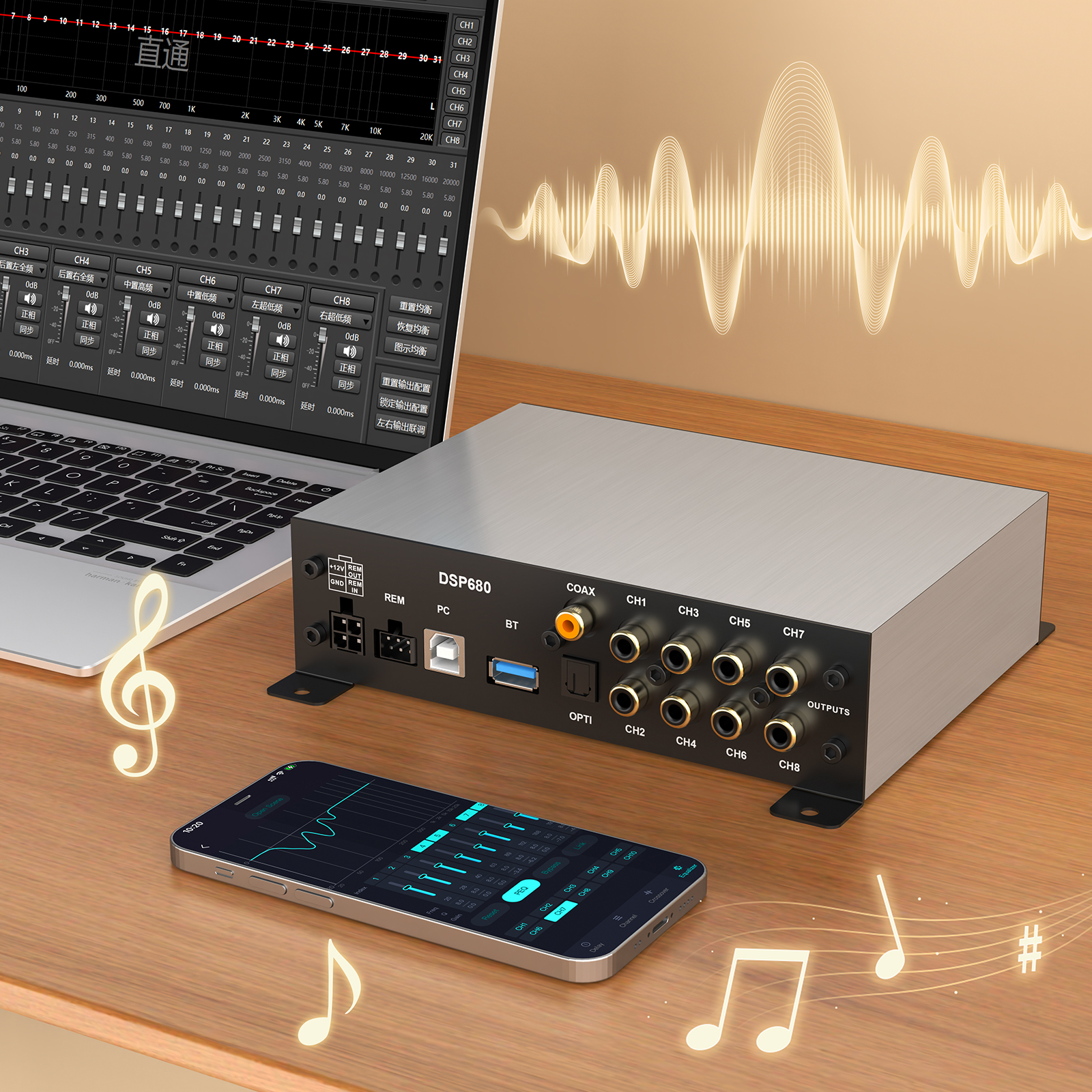

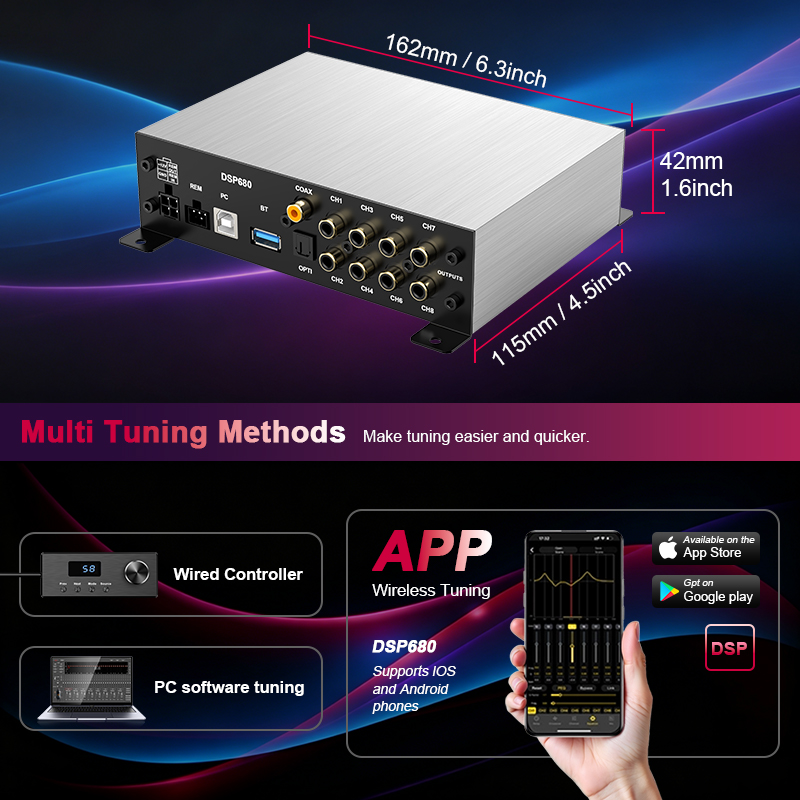

Windows PC software provides the main professional tuning interface. Android and iOS control are available according to the selected external Bluetooth and controller configuration.

DSP680 uses the Cirrus Logic CS47048C-DQZR 32-bit DSP platform with 24-bit/192kHz ADC and DAC conversion for eight-channel signal routing, equalization, crossover control and time alignment.

Best For

• Professional car audio installers

• Factory multi-channel audio upgrades

• Active systems using multiple external amplifiers

• Installations requiring eight independently tunable RCA outputs

• Projects requiring optical or coaxial digital input

• Installers who want auto tuning as a starting point for calibration

• Distributors and brands evaluating an OEM/ODM DSP platform

Standard Package and Optional Accessories

The standard DSP680 sample package includes:

• DSP680 pure DSP processor

• Power cord

• USB cable

• English user manual

• Six RCA adapters

• Four mounting screws

The following accessories are available separately:

• Vehicle-specific plug-and-play DSP harness

• LED wired controller

• Auto tuning microphone

• Bluetooth 5.4 dongle

• External USB audio module

Please confirm the required harness and optional modules before placing the sample order.

Please Confirm Before Ordering

• DSP680 is a standalone DSP processor and does not include a built-in power amplifier.

• External amplifiers are required to drive the speakers.

• Bluetooth 5.4 is provided through an external module and is not built into DSP680.

• USB audio requires an external module.

• The measurement microphone required for auto tuning is optional.

• Vehicle-specific plug-and-play harnesses and wired controllers are optional.

• Please confirm the source unit, speaker layout, amplifier configuration and required accessories before ordering.

Standard Package and Optional Accessories

Included with the Sample

• DSP680 processor

• Power cable

• USB cable

• English user manual

• RCA adapters

• Mounting screws

Optional Accessories

• Vehicle-specific plug-and-play harness

• Wired controller

• Auto-tuning measurement microphone

• External Bluetooth 5.4 dongle

Optional accessories are sold separately. Please confirm the required accessories before placing the sample order.
